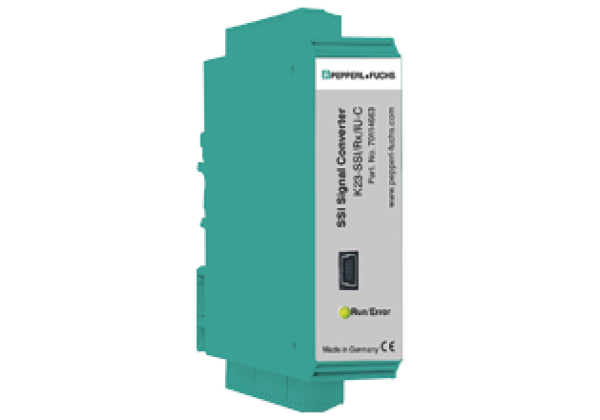

Signal Converter K23-SSI/Rx/IU-C
Brand: Pepperl+Fuchs
Code: K23-SSI/Rx/IU-C
Multifunction device with operating modes for incremental rotary encoders, SSI absolute rotary encoders, and rotary encoders with start/stop interface, 16 bit analog output, configurable for voltage or current operations, USB interface and RS232/RS485 interface for configuration and readout, Extremely short conversion times, User-definable, non-linear characteristic curve with 24 interpolation points, Operating voltage: 18... 30 V DC, Input type: Incremental
Datasheet excerpt: Technical data of K23-SSI/Rx/IU-C
| Product Description |
|---|
| SSI/analog signal converter |
| Indicators/operating means | ||
|---|---|---|
| LED green | status display | |
| Electrical specifications | ||
| Fusing | External: T 0.5 A Reverse polarity protection | |
| Operating voltage | 18... 30 V DC | |
| Operating current | approx. 50 mA (Unladen) | |
| Supply | Encoder: 5 VDC/24 VDC Max. 250 mA | |
| Interface 1 | ||
| Interface type | Serial RS-232, RS-485 | |
| Transfer rate | 9600, 19200, or 38400 baud | |
| Interface 2 | ||
| Connection of | Clock, /Clock, Data, /Data | |
| Interface type | SSI Managing or managed operations | |
| Frequency range | max. 1 MHz | |
| Load current | max. 3 mA / Ri > 10 kΩ / 10 pF | |
| Resolution | 10 bits … 32 bits | |
| Data format | Binary code or gray code | |
| Interface 3 | ||
| Interface type | Start/Stop RS422 input: 1 x (Start_Stop, /Start_Stop); 1x (ext. Init_In, ext. /Init_In) RS422 output: 1 x (Init_Out, /Init_Out) | |
| Resolution | Depends on the speed of the encoder wave guide | |
| Frequency | Init pulse width: 1 s … 9 µs (adjustable) Init pulse frequency: 62.5... 5000 Hz (adjustable) Time measured via pulse frequencies: 48 MHz | |
| Input 1 | ||
| Input type | Incremental | |
| Input format | RS422, TTL, HTL differential, HTL PNP, or HTL NPN | |
| Connection | Lanes: A, /A, B, /B | |
| Input frequency | RS422: max. 1 MHz (RS422 differential signal > 0.5 V) HTL differential: max. 500 kHz (HTL differential signal > 2 V) TTL/HTL (PNP/NPN): max. 250 kHz | |
| Load current | Max. 6 mA/Ri > 5 kΩ/10 pF | |
| Input 2 | ||
| Input type | 6 x Control input | |
| Input format | HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V) | |
| Input frequency | max. 10 kHz | |
| Load current | Max. 2 mA/Ri > 15 kΩ/470 pF | |
| Output 1 | ||
| Number/Type | Analog output Configurable as Current or voltage output | |
| Current | 0/4 mA … 20 mA (Max. load: 270 Ω) | |
| Voltage | -10... 10 V (Max. 2 mA) | |
| Resolution | 16 bit ± 0.1 % at 0 °C … 45 °C ± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C | |
| Response time | < 1 ms | |
| Output 2 | ||
| Output type | 6 x Control output | |
| Output format | PNP | |
| Output voltage | 5 V … 30 V (Depending on voltage at COM+) | |
| Output rated operating current | max. 200 mA | |
| Response time | < 1 ms | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61326-1 | |
| Ambient conditions | ||
| Operating temperature | -20... 60 °C (-4... 140 °F) (noncondensing) | |
| Storage temperature | -25... 75 °C (-13... 167 °F) (noncondensing) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals , Max. core cross section: 1.5 mm2 / AWG 16 | |
| Material | ||
| Housing | plastic | |
| Installation | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| Mass | approx. 100 g | |
| Dimensions | (W x H x D) 23 mm x 102 mm x 102 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210904 |
| ECLASS 12.0 | 27210904 |
| ECLASS 11.0 | 27210904 |
| ECLASS 10.0.1 | 27210904 |
| ECLASS 9.0 | 27210904 |
| ECLASS 8.0 | 27210904 |
| ECLASS 5.1 | 27210904 |
| ETIM 9.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 6.0 | EC002918 |
| ETIM 5.0 | EC002475 |
| UNSPSC 12.1 | 39121007 |
