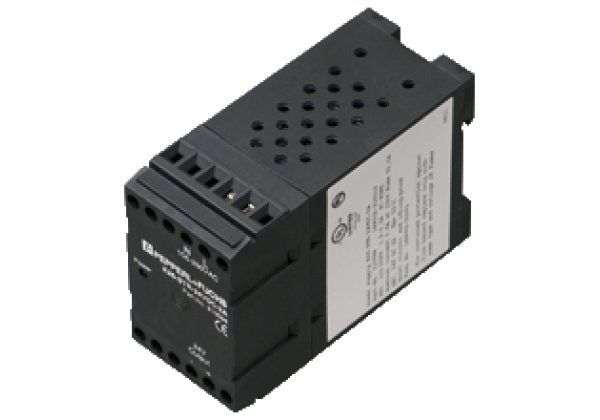

Power supply K26-STR-24VDC-2A

Code: K26-STR-24VDC-2A

Power supply, 24 V DC, 2 A

Datasheet excerpt: Technical data of K26-STR-24VDC-2A

Product Description
Power supply, 24 V DC, 2 A

General specifications
UL File Number		E223176
Indicators/operating means
LED POWER		LED green
Electrical specifications
Fusing		2.5 AT
Capacity factor		0.45 capacitive at 230 V_AC 0.5 capacitive at 120 V_AC
Rated operating voltage		94... 265 V _AC
Rated operating current		1.1 A (120 V_AC) 0.6 A (230 V_AC)
Supply frequency		47... 63 Hz
Efficiency		89 %
Nominal voltage		110... 250 V _AC
Peak inrush current		< 1.5 A²s
Output
Current limit		2.5 A
Voltage		24 V ± 3 %
Current		0... 2 A
Residual ripple		max. 50 mV
Holdup time		> 70 ms/230 V_AC > 10 ms/120 V_AC
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001 EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010
Conformity
Degree of protection		IEC 60529:2001
Standard conformity
Electromagnetic compatibility		EN 55011:2009, EN 61000-6-2:2001, EN 61000-6-3:2001, EN 61000-3-2:2006, EN 61000-6-1:2002, EN 61000-6-4:2002; DIN 61000-3-3:2006
Electrical safety		According to VDE 0805:2006/EN 61010-1:2010/IEC 950:2006
Ambient conditions
Ambient temperature		-10... 70 °C (14... 158 °F) with free convection
Storage temperature		-25... 85 °C (-13... 185 °F)
Mechanical specifications
Degree of protection		IP20
Protection class		II
Connection		Connection terminals, max. conductor cross-section 0.5 ... 2.5 mm² stripped length 10 mm
Mass		207 g
Mounting		Snap onto 35 mm standard rail compliant with DIN EN 60715:2001
