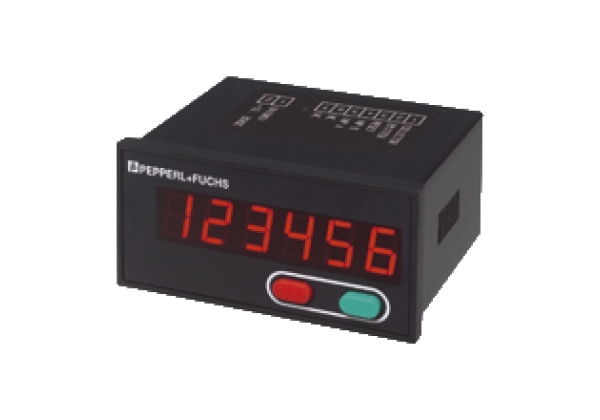

Timer, Counter, Tachometer KC-LED-96-1T-24VDC
Brand: Pepperl+Fuchs
Code: KC-LED-96-1T-24VDC
Counter/Timer/Tachometer, Extremely bright, large LED indicator, 1 pre-select value with transistor output, Adding/subtracting via 2 separate inputs, PNP and NPN sensors can be connected
Datasheet excerpt: Technical data of KC-LED-96-1T-24VDC
| Product Description |
|---|
| LED display with 24 VDC supply voltage |
| General specifications | ||
|---|---|---|
| Pre-selection | single | |
| Data storage | EEPROM | |
| Programming | keypad-driven menu | |
| Functional safety related parameters | ||
| MTTFd | 330 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Type | 6-digit 7-segment LED display, red | |
| Display value | digit height 14 mm | |
| Display interval | 0.001 s... 999999 h | |
| Decimal point | 0 to max 3 fractional digits | |
| Accuracy | Speed indicator: < 0.1%; timer: < 50 ppm | |
| Reset | manually or external | |
| Electrical specifications | ||
| Fusing | 10 … 30 V DC: T 0.1 A | |
| Operating voltage | 10... 30 V DC | |
| Operating current | max. 50 mA | |
| Input | ||
| Signal voltage | ||
| High | 0.6 x Ue... 30 V DC | |
| Low | 0... 0.2 x Ue | |
| Counting frequency | 30 Hz / 60 kHz with position display max. 25 kHz | |
| Minimum pulse duration | 5 ms for reset input | |
| Impedance | approx. 5 kOhm | |
| Counting method | adding or subtracting | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 61000-6-2:2005 | |
| Standard conformity | ||
| Emitted interference | DIN EN 55011:2009, Class B | |
| Ambient conditions | ||
| Ambient temperature | -20... 65 °C (-4... 149 °F) non-condensing | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Altitude | 0... 2000 m | |
| Mechanical specifications | ||
| Degree of protection | IP65 (front) | |
| Mass | approx. 140 g | |
| Dimensions | 96 mm x 48 mm x 89.4 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 41111902 |
