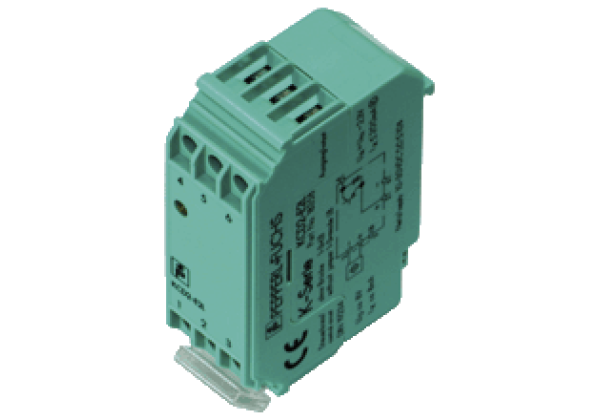

Sensor output interface terminal KCD2-E2L
Brand: Pepperl+Fuchs
Code: KCD2-E2L
Single-channel terminal amplifier with line breakage detection, input for NAMUR sensors, DC 24 V supply voltage, standardized interface to prevent signal transmission errors, switching state display, LED yellow
Datasheet excerpt: Technical data of KCD2-E2L
| Product Description |
|---|
| Sensor output interface terminal with lead breakage monitoring |
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 1837 a | |
| Indicators/operating means | ||
| LED yellow | switching output lead breakage: LED off, output locked | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | ≤ 10 % | |
| Operating current | approx. 22 mA | |
| Input | ||
| Connection | terminals 1+, 2- | |
| Connectable sensor types | NAMUR | |
| Pulse length/pulse interval | ≥ 0.5 ms / ≥ 0.5 ms | |
| Short-circuit current | approx. 8 mA | |
| Sensor supply | 8 V DC, max. 9 V DC at input resistance min. 562 Ω | |
| Switching point | 1.2... 2.1 mA hysteresis approx. 0.2 mA | |
| Line fault detection | with | |
| Trip value | 1 kHz | |
| Output | ||
| Connection | terminal 4+ | |
| Current | 200 mA short-circuit protected | |
| Transistor | PNP | |
| Signal level | UB - 1.1V | |
| Transfer characteristics | ||
| Mode of operation | NO contact | |
| Switching frequency | 1 kHz | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Noise immunity | EN 61326-1:2013 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | self-opening apparatus connection terminals, max. core cross section 0.34... 2.5 mm2 | |
| Mass | 60 g | |
| Dimensions | 20x60x40 (in mm) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210121 |
| ECLASS 12.0 | 27210121 |
| ECLASS 11.0 | 27210121 |
| ECLASS 10.0.1 | 27210121 |
| ECLASS 9.0 | 27210121 |
| ECLASS 8.0 | 27210121 |
| ECLASS 5.1 | 27210121 |
| ETIM 9.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 6.0 | EC002653 |
| ETIM 5.0 | EC002653 |
| UNSPSC 12.1 | 41111902 |
