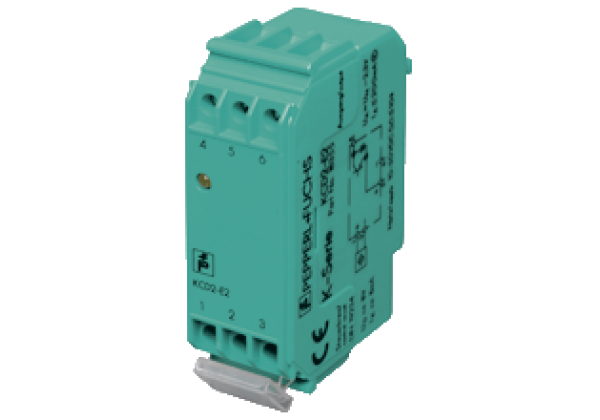

Sensor output interface terminal KCD2-R
Brand: Pepperl+Fuchs
Code: KCD2-R
Relay output with 1 pole, yellow LED indicates switching state, Free-wheeling diode, Compact terminal housing, Clips onto standard 35 mm rail to DIN EN 50 022, Degree of protection IP20
Datasheet excerpt: Technical data of KCD2-R
| Product Description |
|---|
| Sensor output interface terminals with relay output |
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 19699 a | |
| Indicators/operating means | ||
| LED yellow | switch output | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 15 % | |
| Ripple | ≤ 10 % | |
| Operating current | 16 mA | |
| Input | ||
| Connection | terminals 2+, 3- | |
| Connectable sensor types | PNP or NPN 3-wire sensors | |
| Output | ||
| Switching frequency | ≤ 10 Hz | |
| Relay | 1 changeover contact | |
| Contact loading | 30 V DC/2 A resistive load | |
| Delay | Pull-in: approx. 6 ms Drop-out: approx. 2 ms | |
| Mechanical life | ≥108 switching cycles | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Noise immunity | EN 61326-1:2013 | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | self-opening apparatus connection terminals, max. core cross-section 0.34... 2.5 mm2 | |
| Mass | 60 g | |
| Dimensions | 20 mm x 60 mm x 40 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210121 |
| ECLASS 12.0 | 27210121 |
| ECLASS 11.0 | 27210121 |
| ECLASS 10.0.1 | 27210121 |
| ECLASS 9.0 | 27210121 |
| ECLASS 8.0 | 27210121 |
| ECLASS 5.1 | 27210121 |
| ETIM 9.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 6.0 | EC002653 |
| ETIM 5.0 | EC002653 |
| UNSPSC 12.1 | 41111902 |
