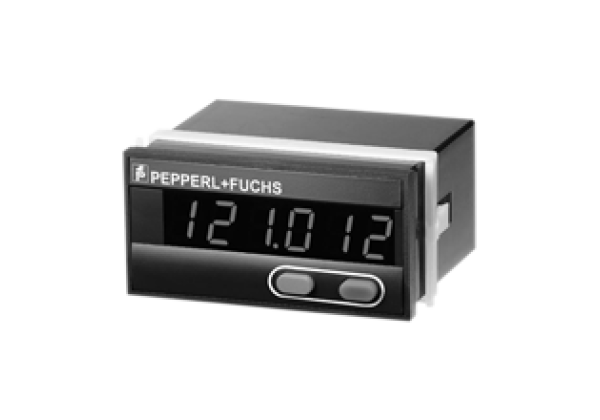

Counter/Timer/Tachometer KCT2-6ST-V
Brand: Pepperl+Fuchs
Code: KCT2-6ST-V
Counter/Timer/Tachometer, Extremely bright, large LED indicator, 1 pre-select value with transistor output, PNP and NPN sensors can be connected, Adding/subtracting via 2 separate inputs
Datasheet excerpt: Technical data of KCT2-6ST-V
| General specifications | ||
|---|---|---|
| Pre-selection | single | |
| Data storage | 106 storage cycles or 10 years, EEPROM | |
| Programming | keypad-driven menu | |
| Functional safety related parameters | ||
| MTTFd | 330 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Type | 7-segment LED display, red | |
| Number of digits | 6 | |
| Display value | digit height 14 mm | |
| Pre-selection | active at counter value ≤ 0 | |
| Key interlock | - | |
| Display interval | -199999... 999999 with suppression of leading zeros | |
| Decimal point | 0 to max 3 fractional digits | |
| Scale factor | 0.0001... 99.9999 | |
| Reset | manually or external | |
| Electrical specifications | ||
| Operating voltage | 90... 260 V AC | |
| Power consumption | max. 6 VA | |
| Input | ||
| Counting frequency | 30 Hz / 20 kHz (max. 11 kHz when counting with phase discriminator) | |
| Minimum pulse duration | 5 ms for reset input | |
| Impedance | 10 kOhm | |
| Voltage | low: 0... 4 V DC ; high: 12... 30 V DC | |
| Counting method | adding or subtracting | |
| Output | ||
| Sensor supply | 24 V DC ± 15 % / 100 mA | |
| Response time | 6 ms | |
| Optocoupler | NPN, open collector and open emitter 30 V / 15 mA | |
| Ambient conditions | ||
| Ambient temperature | -20... 65 °C (-4... 149 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Relative humidity | ≤ 80 % (noncondensing) | |
| Mechanical specifications | ||
| Connection | 2-pin and 7-pin plug-in connection terminals, core cross-section ≤ 1.5 mm2 | |
| Mass | approx. 150 g | |
| Dimensions | 96 mm x 48 mm x 90 mm | |
| Mounting | latch fastener (dimension 48 mm x 100 mm) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 41111902 |
