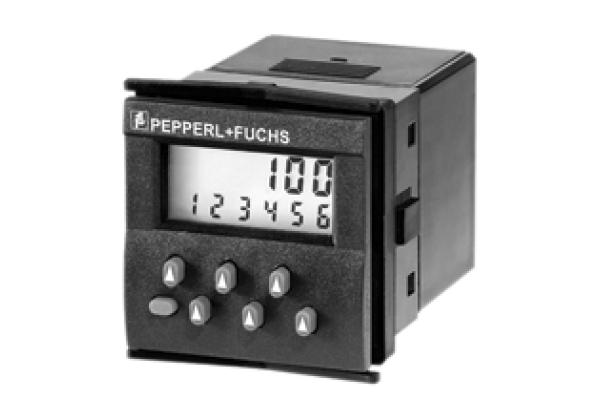

Timer, Counter KCY1-6SR-B
Brand: Pepperl+Fuchs
Code: KCY1-6SR-B
Simple pre-selection setting via one button per decade, Easy-to-read 2-line LCD indicator, With battery operation, Relay output, Input for keypad locking
Datasheet excerpt: Technical data of KCY1-6SR-B
| Product Description |
|---|
| Pulse/batch controller |
| General specifications | ||
|---|---|---|
| Pre-selection | single | |
| Data storage | 5 x 106 switching cyclesor 8 years | |
| Programming | keypad-driven menu | |
| Functional safety related parameters | ||
| MTTFd | 1100 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Type | 2-line, 7-segment LC display with signs | |
| Number of digits | 6 | |
| Display value | digit height 7 mm | |
| Pre-selection | digit height 4.5 mm | |
| Key interlock | via external "high" signal | |
| Display interval | 0... 999999 Display area for the time batch controller: seconds, minutes, hours | |
| Decimal point | 0 to max 3 fractional digits | |
| Scale factor | - | |
| Refresh cycle of the measured value output | 0.1 … 99.9 seconds, programmable | |
| Reset | manually or external | |
| Electrical specifications | ||
| Operating voltage | Battery 2 x 3.6 V | |
| Input | ||
| Counting frequency | max. 30 Hz | |
| Impedance | 110 kOhm | |
| Counting method | adding or subtracting | |
| Output | ||
| Relay | normally open contact (max. 60 VA) 230 V AC/0.5 A; 60 V DC/2 A | |
| Response time | < 20 ms | |
| Ambient conditions | ||
| Ambient temperature | -20... 65 °C (-4... 149 °F) | |
| Storage temperature | -20... 60 °C (-4... 140 °F) | |
| Relative humidity | ≤ 80 % (noncondensing) | |
| Mechanical specifications | ||
| Mass | 80 g | |
| Dimensions | 48 mm x 48 mm x 85 mm | |
| Mounting | latch fastener (dimension 50.5 mm x 54.5 mm) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 41111902 |
