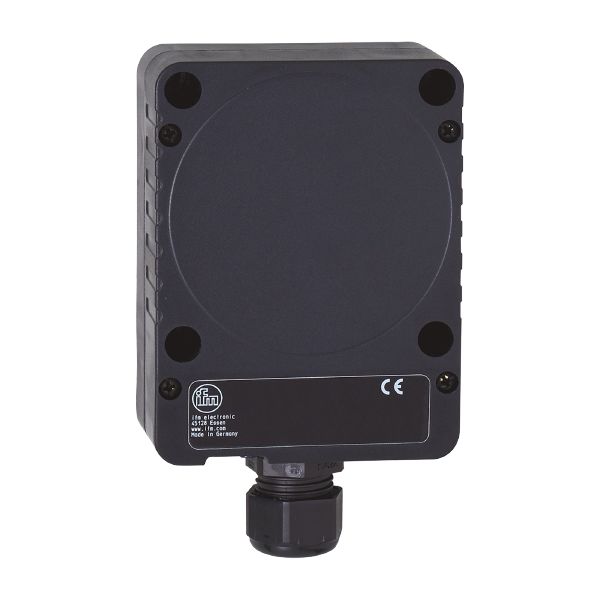

KD501A - efector100-KDE3060-FPKG/NI/3D
Brand: IFM Electronic
Code: KD501A
- Easy setting of the sensing range via potentiometer
- For applications in hazardous areas
- Robust housing for use in harsh industrial environments
- Output function normally open / normally closed programmable
- Long sensing range of 60 mm
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range [mm] | 60 |
| Housing | rectangular |
| Dimensions [mm] | 105 x 80 x 42 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 60 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 60 |
| Real sensing range Sr [mm] | 60 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
| Increased immunity | yes |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| EMC |
| ||
| MTTF [years] | 537 |
Mechanical data
| Weight [g] | 279.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 105 x 80 x 42 |
| Materials | PPE modified; PA |
| Tightening torque [Nm] | housing screws: 0,9 Nm; screws: 4 Nm |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — KD501A — 24.04.2023 —
