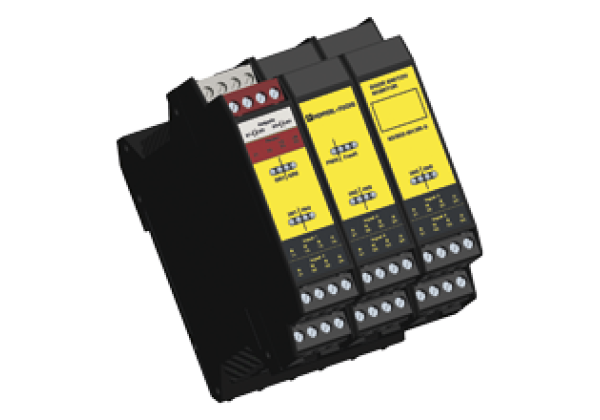

Safety Monitor KE5D2-6H/2R-S

Code: KE5D2-6H/2R-S

24 V AC/DC supply, (6) Monitored inputs, DIN rail mountable, Dual output relay contacts, Internal relay monitoring

Datasheet excerpt: Technical data of KE5D2-6H/2R-S

Product Description
Safety Monitor

General specifications
UL File Number		E179102
Supply
Rated voltage		24 V AC/V DC ( for AC, 45... 62 Hz )
Rated current		< 0. 5 A
Power consumption		< 12 W
Indicators/operating means
LED green		power
LED red		sensor status (one per channel/two per input)
LED red/green		relay : ( 2 ) red , ( 2 ) green
Switching state		LED red flashing: fault signal
Input
Input type		(6) dedicated input devices for 50FY41-.. series
Input voltage		12 V DC , (2 channel, sink/source)
Output
Current		5 mA to 5 A (NO contact)
Relay
	Switching voltage	20... 230 V AC/DC
	Switching current	See Specifications in manual for details of currents and cycles
	Mechanical life	> 1,000,000 operations
Output I		2 relay outputs , NO Contact
Response time		20 ms (switch open to contact open)
Transfer characteristics
Time delay before availability		3 s
Compliance with standards and directives
Directive conformity
	Machinery Directive 2006/42/EC	EN/ISO 13849-1:2008 / AC : 2009 category 3 PL d
	Low Voltage Directive 2006/95/EC	EN 60664-1:2007
	EMC Directive 2004/108/EC	EN 61326-1:2006
Standard conformity
	Electromagnetic compatibility	EN 61326-1:2006 EN 61000-6-3:2007+A1:2011 or EN 61000-6-4:2007/A1:2011
	Standards	EN 61496-1:2008 IEC 61496-2:2006 EN 50178:1998
Approvals and certificates
UL approval		UL 508
Ambient conditions
Ambient temperature		-20... 50 °C (-4... 122 °F)
Mechanical specifications
Housing length		107 mm
Housing width		67.8 mm
Housing height		99 mm
Degree of protection		IP20
Connection		screw connection, max. 2.5 mm²
Mass		approx. 545 g
Mounting		DIN mounting rail
