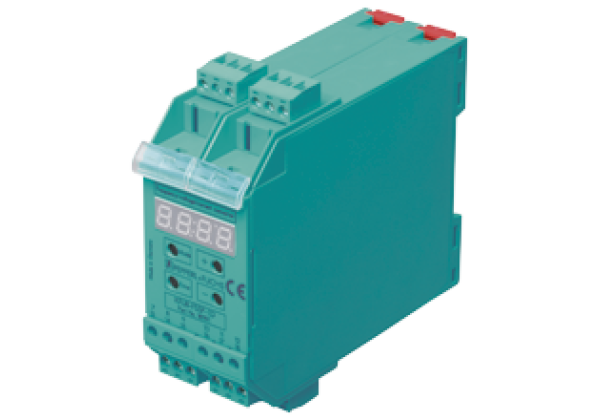

Frequency voltage current converter KFU8-FSSP-1.D
Brand: Pepperl+Fuchs
Code: KFU8-FSSP-1.D
Limit frequency 40 kHz, Voltage or current ouptput, Incrementing output
(Spacing factor 1... 9999), Multi-range power pack, 2-, 3-, 4-wire and NAMUR sensors as well as rotary encoder connectable, Rated voltage: 200... 230 V AC ; 100 … 130 V AC; 50/60 Hz
20 VDC... 30 VDC, Connectable sensor types: NAMUR sensors according to DIN EN 60947-5-6, Connection: terminals 7+, 13- sensor supply
terminals 14, 15 NPN/PNP input (galvanically isolated)
Datasheet excerpt: Technical data of KFU8-FSSP-1.D
| Product Description |
|---|
| Frequency voltage current converter, 40 kHz version |
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 100 a | |
| Supply | ||
| Rated voltage | 200... 230 V AC ; 100 … 130 V AC; 50/60 Hz 20 VDC... 30 VDC | |
| Fusing | external fusing 4 A | |
| Power consumption | AC: < 5 VA DC: < 5 W | |
| Indicators/operating means | ||
| Type | 4-digit, 7-segment red display, 7 mm digit height | |
| Display interval | 0.002... 9999 Hz or 0.01... 9999 min-1 | |
| Parameter assignment | keypad-driven menu | |
| Input 1 | ||
| Connection | terminals 8-, 9+ | |
| Connectable sensor types | NAMUR sensors according to DIN EN 60947-5-6 | |
| Open loop voltage | 8.2 V DC | |
| Short-circuit current | 6.5 mA | |
| Switching point | 1.2... 2.1 mA Switching hysteresis approx. 0.2 mA | |
| Impedance | 1.2 kOhm | |
| Input 2 | ||
| Switching point | high: 16... 30 V DC; max.10 mA; Ri ≅ 3 kOhm low: 0... 6 V DC | |
| Connection | terminals 7+, 13- sensor supply terminals 14, 15 NPN/PNP input (galvanically isolated) | |
| Connectable sensor types | 2-, 3-, or 4-wire proximity switches and incremental rotary encoder | |
| Sensor supply | 19... 28 V DC non-stabilised; ≤ 30 mA short-circuit protected | |
| Output | ||
| Analog voltage output | 0... 10 V DC; 2... 10 V DC; 30 mA max.; resolution: 12 mV; Ri ≥ 330 Ω (terminal 5+, 6-) | |
| Analog current output | 0... 20 mA; 4... 20 mA; resolution: 25 µA; Ri ≤ 600 Ω (terminal 4-, 5+) | |
| Digital incrementing | ≥ (Ub -3 V), 20 mA, short-circuit proof (Terminals 1-, 2+) with frequency division Fin /1... Fin /9999 | |
| Transfer characteristics | ||
| Input frequency | ≤ 40000 Hz, pulse pause/pulse length: ≥ 12 µs | |
| Deviation | ≤ 0.2 % of full-scale value | |
| Changing interval | 5 ms (Internal processing time) | |
| Standard conformity | ||
| Electromagnetic compatibility | acc. to EN 50081-2 / EN 50082-2 | |
| Ambient conditions | ||
| Ambient temperature | -25... 40 °C (-13... 104 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 80 %, not condensing | |
| Altitude | 0... 2000 m | |
| Operating conditions | The device has only to be used in an indoor area. | |
| Mechanical specifications | ||
| Connection assembly | Caution: Please be aware that the device may only be connected to a switchable power supply. The switch or circuit breaker must be easy to reach and identified as the separator for the device. | |
| Degree of protection | IP20 | |
| Connection | coded, removable terminals , max. core cross section 0.34... 2.5 mm2 | |
| Construction type | modular terminal housing in Makrolon, System KF For use in the switch cabinet/switch cabinet module | |
| Mounting | snap-on to 35 mm standard rail or screw fixing | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210904 |
| ECLASS 12.0 | 27210904 |
| ECLASS 11.0 | 27210904 |
| ECLASS 10.0.1 | 27210904 |
| ECLASS 9.0 | 27210904 |
| ECLASS 8.0 | 27210904 |
| ECLASS 5.1 | 27210904 |
| ETIM 9.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 6.0 | EC002918 |
| ETIM 5.0 | EC002475 |
| UNSPSC 12.1 | 39121007 |
