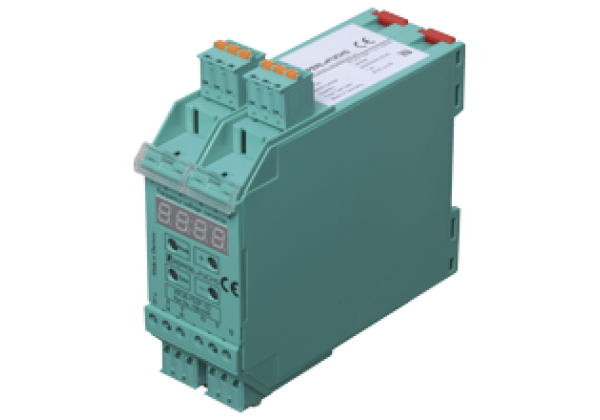

Frequency voltage current converter KFU8-FSSP-1.D-Y322444
Brand: Pepperl+Fuchs
Code: KFU8-FSSP-1.D-Y322444
Limit frequency 40 kHz, Voltage or current ouptput, Incrementing output
(Spacing factor 1... 9999), 2-, 3-, 4-wire sensors and rotary encoder can be connected, Auxiliary power output for sensors, Rated voltage: 20... 30 V DC, Connection: terminals 7+, 13- sensor supply
terminals 14, 15 NPN/PNP input (galvanically isolated), Analog voltage output: 0... 10 V DC; 2... 10 V DC; 30 mA max.; resolution: 12 mV; Ri ≅ 330 Ω (terminal 5+, 6-)
Datasheet excerpt: Technical data of KFU8-FSSP-1.D-Y322444
| Product Description |
|---|
| Frequency voltage current converter, 40 kHz version |
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 100 a | |
| Supply | ||
| Rated voltage | 20... 30 V DC | |
| Fusing | external fusing 4 A | |
| Power consumption | < 5 W | |
| Indicators/operating means | ||
| Type | 4-digit, 7-segment red display, 7 mm digit height | |
| Display interval | 0.002... 9999 Hz or 0.01... 9999 min-1 | |
| Parameter assignment | keypad-driven menu | |
| Input 2 | ||
| Switching point | high: 16... 30 V DC; max.10 mA; Ri ≅ 3 kOhm low: 0... 6 V DC | |
| Connection | terminals 7+, 13- sensor supply terminals 14, 15 NPN/PNP input (galvanically isolated) | |
| Connectable sensor types | 2-, 3-, or 4-wire proximity switches and incremental rotary encoder | |
| Sensor supply | Rated voltage - 1.5 V non-stabilised; ≤ 30 mA short-circuit protected | |
| Output | ||
| Analog voltage output | 0... 10 V DC; 2... 10 V DC; 30 mA max.; resolution: 12 mV; Ri ≅ 330 Ω (terminal 5+, 6-) | |
| Analog current output | 0... 20 mA; 4... 20 mA; resolution: 25 µA; Ri ≤ 600 Ω (terminal 4-, 5+) | |
| Digital incrementing | ≥ (Ub -3 V), 20 mA, short-circuit proof (Terminals 1-, 2+) with frequency division Fin /1... Fin /9999 | |
| Transfer characteristics | ||
| Input frequency | ≤ 40000 Hz, pulse pause/pulse length: ≥ 12 µs | |
| Deviation | ≤ 0.2 % of full-scale value | |
| Changing interval | 5 ms (Internal processing time) | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005 EN 61000-6-4:2007+A1:2011 EN 61326-1:2013 | |
| Ambient conditions | ||
| Ambient temperature | -25... 40 °C (-13... 104 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | max. 80 %, not condensing | |
| Altitude | 0... 2000 m | |
| Operating conditions | The device has only to be used in an indoor area. | |
| Mechanical specifications | ||
| Connection assembly | Caution: Please be aware that the device may only be connected to a switchable power supply. The switch or circuit breaker must be easy to reach and identified as the separator for the device. | |
| Degree of protection | IP20 | |
| Connection | removable terminals , max. core cross section 0.2 mm2... 2.5 mm2 | |
| Construction type | modular terminal housing in Makrolon, System KF For use in the switch cabinet/switch cabinet module | |
| Mounting | snap-on to 35 mm standard rail or screw fixing | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210904 |
| ECLASS 12.0 | 27210904 |
| ECLASS 11.0 | 27210904 |
| ECLASS 10.0.1 | 27210904 |
| ECLASS 9.0 | 27210904 |
| ECLASS 8.0 | 27210904 |
| ECLASS 5.1 | 27210904 |
| ETIM 9.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 6.0 | EC002918 |
| ETIM 5.0 | EC002475 |
| UNSPSC 12.1 | 39121007 |
