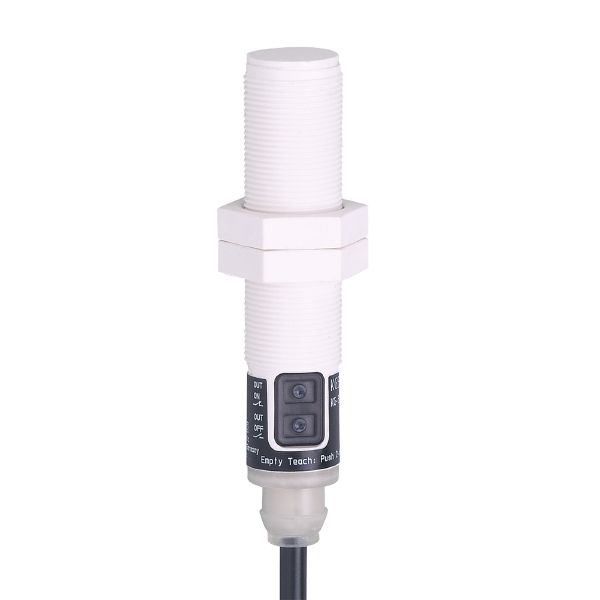

KG5069 - efector100-KG-3080NFPKGS2T

Code: KG5069

High noise immunity
Reliable level detection of conductive media
Easy parameter setting via IO-Link
Output function normally open / normally closed programmable
Clearly visible indication of the switching status via LED ring

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Sensing range [mm]	8
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 77

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	10
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	8

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Interfaces

Communication interface

IO-Link

Transmission type

COM1 (4,8 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor

SIO mode

yes

Min. process cycle time [ms]

101

Supported DeviceIDs

Type of operation	DeviceID
Default	387

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 6 shocks / 11 ms half-sine (x, y, z)

MTTF [years]

653

Mechanical data

Weight [g]	97.3
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M18 x 1 / L = 77
Thread designation	M18 x 1
Materials	housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U

Displays / operating elements

Display

switching status

1 x LED, yellow

Teach function

yes

Electronic lock

yes

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG5069-01 — 13.04.2023 —
