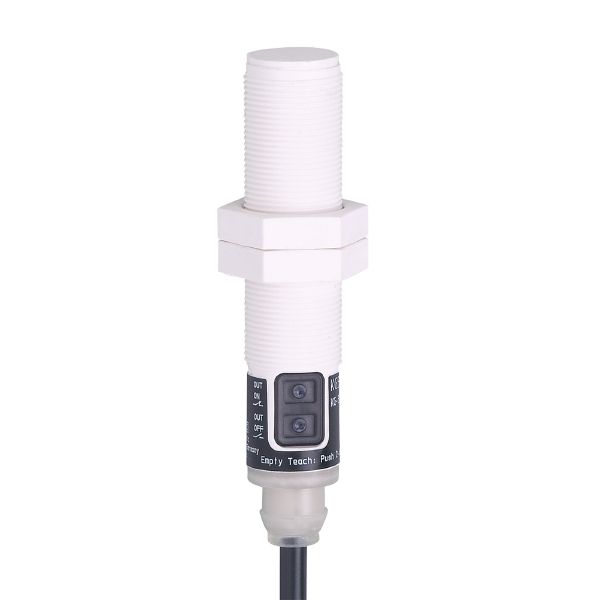

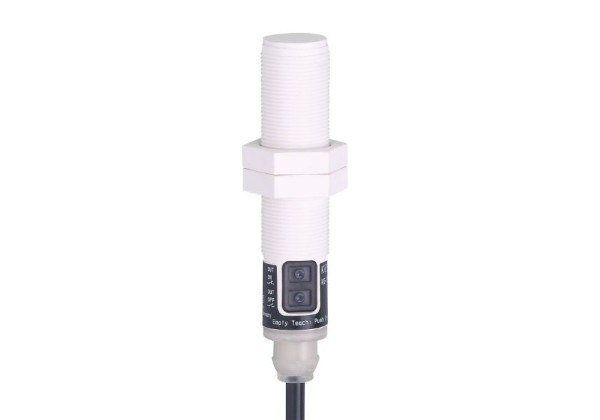

KG5070 - efector100-KG-3080NFPKGS2T/10M
Brand: IFM Electronic
Code: KG5070
- Reliable level detection of conductive media
- Sensitivity adjustable via teach buttons
- High noise immunity
- Output function normally open / normally closed programmable
- Clearly visible indication of the switching status via LED ring
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range [mm] | 8 |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 77 |
Application
| Recommended media | conductive media with a dielectric constant > 20 |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 8 |
|---|---|
| Real sensing range Sr [mm] | 8 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.1 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -20...20 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 672 |
Mechanical data
| Weight [g] | 375.2 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 77 |
| Thread designation | M18 x 1 |
| Materials | housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Teach function | yes | ||||
| Electronic lock | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 10 m, PVC; conduit attachment; 3 x 0.34 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KG5070-00 — 13.04.2023 —
