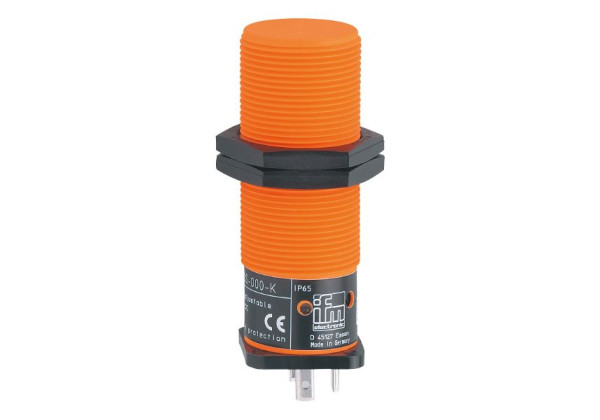

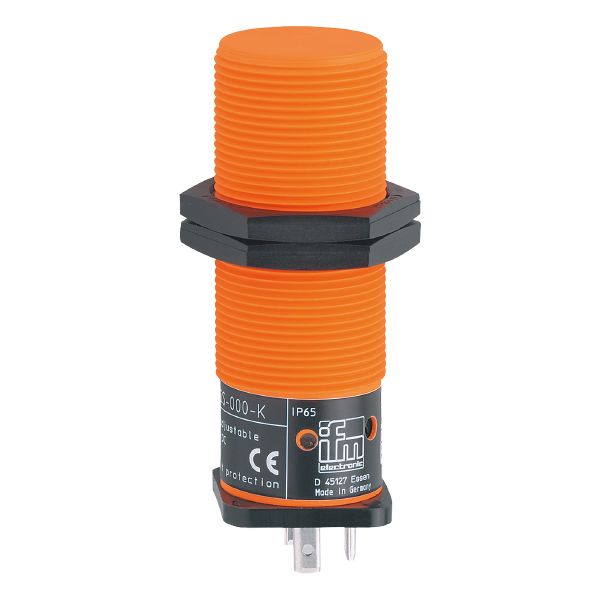

KI0040 - efector100-KI-2015-FBOA/NI/SS-000-K
Brand: IFM Electronic
Code: KI0040
- Easy setting of the sensing range via potentiometer
- With combined AC/DC output stage
- Two-wire technology
- High noise immunity
- Output function normally open / normally closed programmable
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range [mm] | 15 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 92 |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Reverse polarity protection | no |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC [V] | 8 |
| Max. voltage drop switching output AC [V] | 10 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC) |
| Permanent current rating of switching output AC [mA] | 200; (250 (...50 °C)) |
| Permanent current rating of switching output DC [mA] | 200; (250 (...50 °C)) |
| Short-time current rating of switching output [mA] | 1500; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 15 |
|---|---|
| Real sensing range Sr [mm] | 15 ± 10 % |
| Operating distance [mm] | 0...12.1 |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 65 |
| Increased immunity | yes; (increased immunity to conducted radio frequency interference) |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 293 |
Mechanical data
| Weight [g] | 104 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 92 |
| Thread designation | M30 x 1.5 |
| Materials | PBT |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x valve plug type A DIN (DIN EN 175301-803) |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0040-02 — 13.04.2023 —
