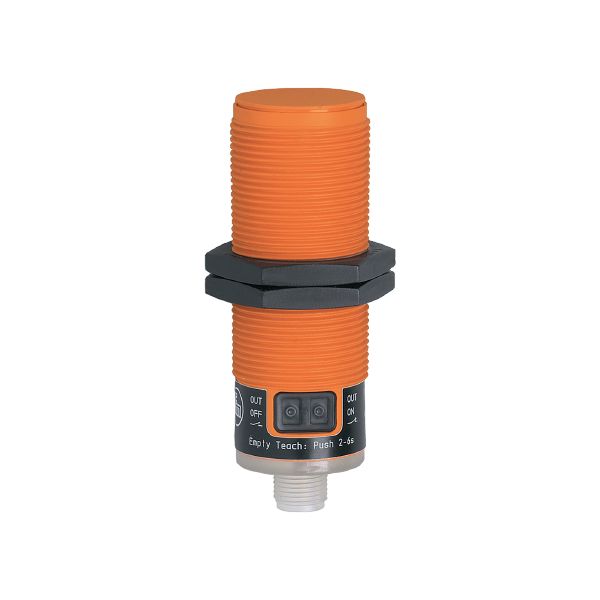

KI0058 - efector100-KI-2200NFBOAP2T/LS100

Code: KI0058

Easy adjustment to the empty and full state via pushbutton
For the detection of liquids and dry bulk materials
With combined AC/DC output stage
Adjustable switching delay
Output function normally open / normally closed programmable

Product characteristics

Output function	normally open / normally closed; (selectable)
Sensing range [mm]	20
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 90

Electrical data

Operating voltage [V]	30...250 AC / 20...250 DC
Rated insulation voltage [V]	250
Protection class	II
Reverse polarity protection	yes
Max. power-on delay time [ms]	700
Measuring principle	capacitive

Outputs

Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	10
Max. voltage drop switching output AC [V]	10
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]	100; (150 (...40 °C))
Permanent current rating of switching output DC [mA]	100; (150 (...40 °C))
Short-time current rating of switching output [mA]	1000; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	20

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Software / programming

Parameter setting options	5 output hold times programmable; (1: 15 min; 2: 30 min; 3: 45 min; 4: 60 min; 5: 0 min)

Operating conditions

Ambient temperature [°C]

-25...80

Note on ambient temperature

temperature of the sensing face: -25...110 °C

Protection

IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2	4 kV CD / 8 kV AD
EN 61000-4-3	3 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	3 V
EN 55011	class B

Mechanical data

Weight [g]	109.8
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 90
Thread designation	M30 x 1.5
Materials	housing: PBT; pushbuttons: TPE-U; LED window: PC

Displays / operating elements

Display

switching status

1 x LED, yellow

Teach function

yes

Electronic lock

yes

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied

lock nuts: 2

Remarks

Note:

Check the safe functioning of the unit after a short circuit.

Pack quantity

1 pcs.

Electrical connection - plug

	Connector: 1 x 1/2"; coding: C

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0058-00 — 13.04.2023 —
