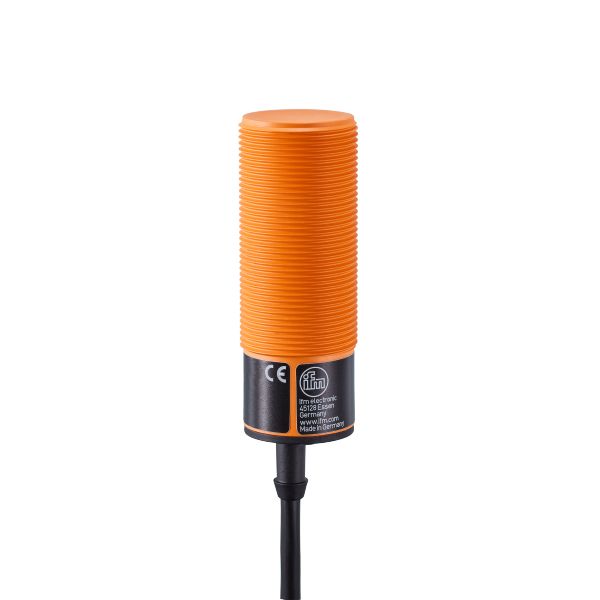

KI0061 - efector100-KI-2200NBBOA/2P

Code: KI0061

For the detection of liquids and dry bulk materials
With combined AC/DC output stage
Adjustable switching delay
Two-wire technology

Product characteristics

Output function	normally closed
Sensing range [mm]	20
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 81

Electrical data

Operating voltage [V]	20...250 AC/DC
Current consumption [mA]	< 20
Protection class	II
Reverse polarity protection	no

Outputs

Output function	normally closed
Max. voltage drop switching output DC [V]	8
Max. voltage drop switching output AC [V]	10
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]	200; (350 (...50 °C))
Permanent current rating of switching output DC [mA]	200; (350 (...50 °C))
Short-time current rating of switching output [mA]	2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no
Output holding time	adjustable (0...60 s )

Detection zone

Sensing range [mm]	20
Sensing range adjustable	yes
Factory setting sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Operating conditions

Ambient temperature [°C]

-25...80

Note on ambient temperature

temperature of the sensing face: -25...110

Protection

IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	25 kV CD / 30 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

Vibration resistance

(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

30 g 6 shocks / 11 ms half-sine (x, y, z)

MTTF [years]

221.4

Mechanical data

Weight [g]	186.5
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 81
Thread designation	M30 x 1.5
Materials	PBT

Displays / operating elements

Display

switching status

1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied

lock nuts: 2

screwdriver: 1

Remarks

Recommendation: Check the safe functioning of the unit after a short circuit.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0061-00 — 13.04.2023 —
