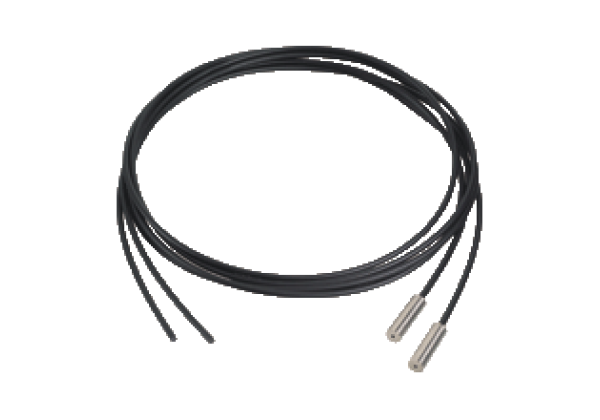

Plastic fiber optic KLE-C01-2,2-2,0-K101
Brand: Pepperl+Fuchs
Code: KLE-C01-2,2-2,0-K101
Plastic fiber optic - thru-beam, Series: Plastic fiber optic - thru-beam, End piece: Cylindrical, Sheathing: PVC, Device series: SU18 ; SU18/35 ; SU19 ; ML17-LL, Fiber optic length: 2000 mm , adjustable
Datasheet excerpt: Technical data of KLE-C01-2,2-2,0-K101
| Product Description |
|---|
| Plastic fiber optic - thru-beam |
| General specifications | ||
|---|---|---|
| Detection range | SU18: 220 mm SU18/35: 920 mm SU19: 220 mm | |
| Fiber optic length | 2000 mm , adjustable | |
| Fiber optic diameter | 2.2 mm | |
| Adapter form | 00 | |
| End piece | Cylindrical | |
| Bending radius | min. 25 mm | |
| Fiber configuration | see dimensions | |
| Opening angle | 67 ° | |
| Accessories provided | Cutter for plastic fiber optics | |
| Ambient conditions | ||
| Ambient temperature | -55... 70 °C (-67... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Optical face | plastic | |
| Sheathing | PVC | |
| Core | plastic | |
| End piece | Stainless steel 1.4305 / AISI 303 | |
| General information | ||
| Scope of delivery | Fiber optic cables packaged in pairs | |
| Fiber optic amplifiers | ||
| Device series | SU18 ; SU18/35 ; SU19 ; ML17-LL | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
