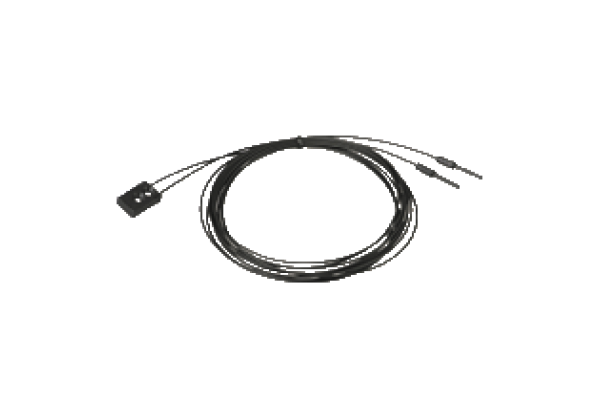

Plastic fiber optic KLR-C02-1,3-2,0-K130
Brand: Pepperl+Fuchs
Code: KLR-C02-1,3-2,0-K130
Plastic fiber optic - diffuse, Series: Plastic fiber optic - diffuse, End piece: Rectangular type, Sheathing: PVC, Device series: SU18 ; SU18/35 ; SU19, Fiber optic length: 2000 mm , adjustable
Datasheet excerpt: Technical data of KLR-C02-1,3-2,0-K130
| Product Description |
|---|
| Plastic fiber optic - diffuse |
| General specifications | ||
|---|---|---|
| Sensor range | 1 mm... 8 mm | |
| Fiber optic length | 2000 mm , adjustable | |
| Fiber optic diameter | 1.3 mm | |
| Adapter form | 00 | |
| End piece | Rectangular type | |
| Bending radius | min. 25 mm | |
| Fiber configuration | see dimensions | |
| Opening angle | 67 ° | |
| Accessories provided | Cutter for plastic fiber optics | |
| Ambient conditions | ||
| Ambient temperature | -55... 70 °C (-67... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Optical face | plastic | |
| Sheathing | PVC | |
| Core | plastic | |
| End piece | plastic | |
| Fiber optic amplifiers | ||
| Device series | SU18 ; SU18/35 ; SU19 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
