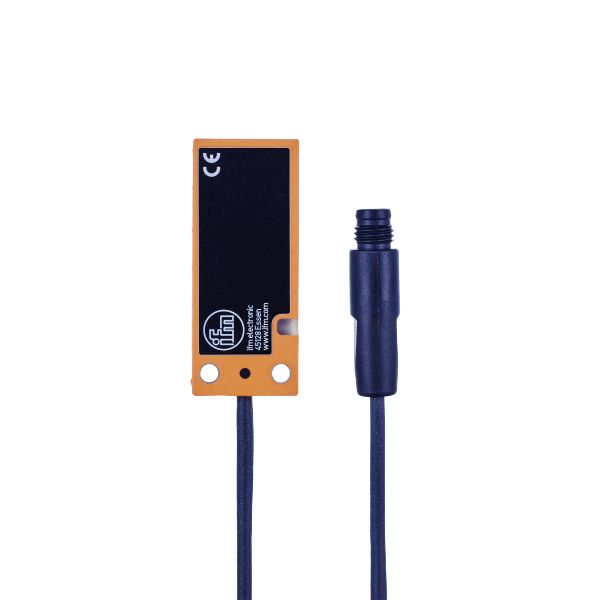

KQ5102 - efector100-KQ-3120NFPKG/0,04M/AS

Code: KQ5102

Easy parameter setting via IO-Link
Output function normally open / normally closed programmable
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
For position detection or level monitoring

Product characteristics

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Sensing range [mm]	12
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	20 x 7 x 48

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 17
Protection class	III
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	PNP
Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	12
Real sensing range Sr [mm]	12 ± 10 %

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Software / programming

Parameter setting options	only via IO-Link

Interfaces

Communication interface

IO-Link

Transmission type

COM1 (4,8 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9 CDV

Profiles

Smart Sensor

SIO mode

yes

Supported DeviceIDs

Type of operation	DeviceID
Default	371

Operating conditions

Ambient temperature [°C]

-25...80

Note on ambient temperature

for UL application:...50 °C

Protection

IP 65; IP 67; IP 69K

Tests / approvals

EMC

EN 61000-4-2	8 kV AD
EN 61000-4-3	10 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	3 V
EN 55011	class B

Vibration resistance

EN 60068-2-6 Fc

(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 6 shocks / 11 ms half-sine (x, y, z)

MTTF [years]

771

UL approval

Ta	-25...50 °C
Enclosure type	Type 1
power supply	Class 2

Mechanical data

Weight [g]	17.9
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	20 x 7 x 48
Materials	PBT; TPE-U; stainless steel

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.04 m, PUR, Ø 2.9 mm
Connection	Connector: 1 x M8; coding: A
