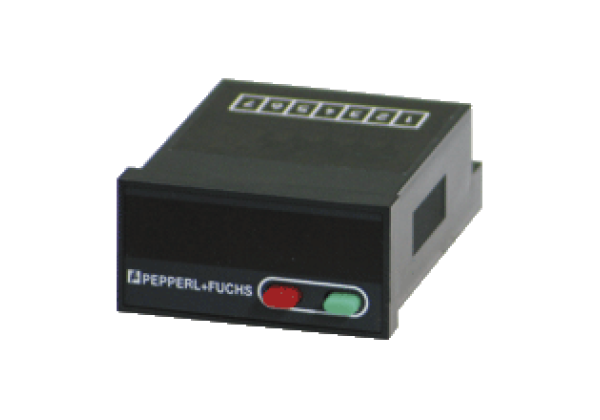

LED temperature display KT-LED-24-PT100-24VDC
Brand: Pepperl+Fuchs
Code: KT-LED-24-PT100-24VDC
Temperature display in °C or °F, Resolution up to 0.1 °C, Extremely bright, large LED indicator, RTD types Pt100, Ni100 in 2-, 3-, or 4-wire mode, Galvanic isolation
Datasheet excerpt: Technical data of KT-LED-24-PT100-24VDC
| Product Description |
|---|
| LED temperature display for Pt100 temperature sensor, with 24 VDC supply voltage |
| General specifications | ||
|---|---|---|
| Data storage | EEPROM | |
| Programming | keypad-driven menu | |
| Functional safety related parameters | ||
| MTTFd | 540 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Type | 5-digit 7-segment LED display, red | |
| Display value | digit height 8 mm | |
| Display interval | -1999.9... 9999.9 | |
| Decimal point | 0 to max 1 fractional digit | |
| Temperature range | Pt100 acc. DIN IEC 751: -199.9... 850 °C (-327.8... 1562 °F) Ni100 acc. DIN 43760: -60... 250 °C (-76... 482 °F) | |
| Resolution | 0.1 °C (0.1 °F) bzw. 1 °C (1 °F) | |
| Refresh cycle of the measured value output | 1 - 2 s-1 | |
| Reset | manually or external | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC galvanically isolated | |
| Operating current | max. 40 mA | |
| Input | ||
| Suitable sensors | Pt100/Ni100 resistance thermometer, with sensor breakage monitoring | |
| Signal voltage | Display latch, display hold for current measured value | |
| High | 4... 30 V DC | |
| Low | 0... 2 V DC | |
| Pt 100 range (-200... 850 °C) | 0... 20 Ω 2-wire: programmable 3-/4-wire: no adjustment necessary | |
| Ni 100-range (-60... 250 °C) | 0... 20 Ω 2-wire: programmable 3-/4-wire: no adjustment necessary | |
| Current | 1 mA | |
| Counting frequency | 5 measurements per second | |
| Linearity error | Pt100 < 0.1% at 20°C ambient temperature Ni100 < 0.2% at 20°C ambient temperature | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 61000-6-2:2005 | |
| Standard conformity | ||
| Emitted interference | DIN EN 55011:2009, Class B | |
| Ambient conditions | ||
| Ambient temperature | -20... 65 °C (-4... 149 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
| Relative humidity | ≤ 85 % (noncondensing) | |
| Temperature drift | 0.1 K/Kenvironment | |
| Mechanical specifications | ||
| Degree of protection | IP65 (front) | |
| Mass | approx. 45 g | |
| Dimensions | 48 mm x 24 mm x 68.3 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27210301 |
| ECLASS 12.0 | 27210301 |
| ECLASS 11.0 | 27210301 |
| ECLASS 10.0.1 | 27210301 |
| ECLASS 9.0 | 27210301 |
| ECLASS 8.0 | 27210301 |
| ECLASS 5.1 | 27210301 |
| ETIM 9.0 | EC002300 |
| ETIM 8.0 | EC002300 |
| ETIM 7.0 | EC002300 |
| ETIM 6.0 | EC002300 |
| ETIM 5.0 | EC000677 |
| UNSPSC 12.1 | 43211906 |
