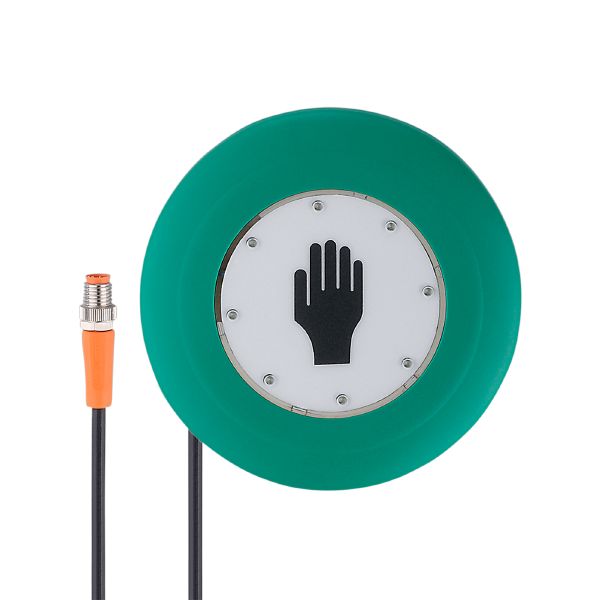

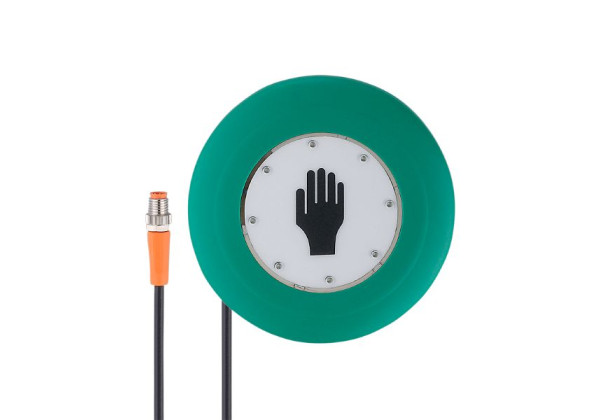

KT5002 - efector140-EFE140 HAN UNITS BIP EXT
Brand: IFM Electronic
Code: KT5002
- Non-contact switching without mechanical pressure
- LEDs for visual feedback
- Oil-resistant, impact and scratch resistant
- Surround available in different colours
- Wear-free and maintenance-free
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions [mm] | Ø 100 / L = 11 |
Application
| Operating principle | dynamic |
|---|
Electrical data
| Operating voltage [V] | 12...30 DC |
|---|---|
| Current consumption [mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Length of output signal [ms] | 300 |
Response times
| Response time [ms] | 35 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67; IP 69K; (on the front) |
Tests / approvals
| MTTF [years] | 391 |
|---|
Mechanical data
| Weight [g] | 131 |
|---|---|
| Dimensions [mm] | Ø 100 / L = 11 |
| Materials | active face: PA Grilamid TR 90UV transparent; housing: PC/ABS black; Coloured surround: PC/ABS green |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Cable: 0.3 m, PUR |
|---|---|
| Connection | Connector: 1 x M8; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT5002-01 — 01.07.2020 —
