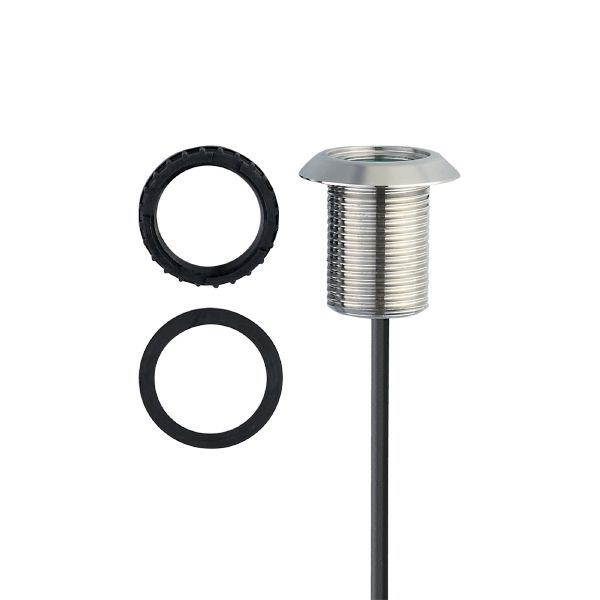

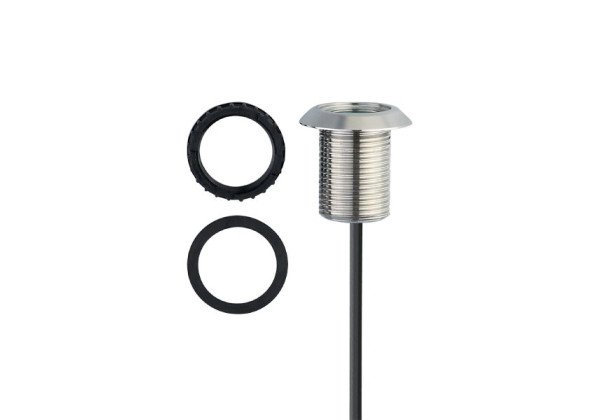

KT5310 - efector140-EFE140 HAN UNITS BIP EXT

Code: KT5310

Non-contact switching without mechanical pressure
Robust, impact and scratch resistant stainless steel housing
High protection rating for the requirements of harsh industrial environments
Use in applications with regular cleaning
Static evaluation principle protects against unauthorised use

Product characteristics

Electrical design	PNP
Output function	normally open
Dimensions [mm]	Ø 32 / L = 31

Application

Operating principle	static

Electrical data

Operating voltage [V]	12...30 DC
Current consumption [mA]	30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500

Outputs

Electrical design	PNP
Output function	normally open
Permanent current rating of switching output DC [mA]	200
Short-circuit protection	yes
Overload protection	yes

Response times

Response time [ms]	35

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 69K; (on the front)

Tests / approvals

EMC

IEC 61000-4

Mechanical data

Weight [g]	116
Dimensions [mm]	Ø 32 / L = 31
Materials	housing: stainless steel (1.4404 / 316L); active face: PA Grilamid TR 90UV

Displays / operating elements

Display

switching status	1 x LED, red
function	1 x LED, green can be triggered

Accessories

Items supplied

lock nuts: 1

Gasket: 1

Accessories (optional)

symbol disc

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT5310-00 — 10.11.2015 —
