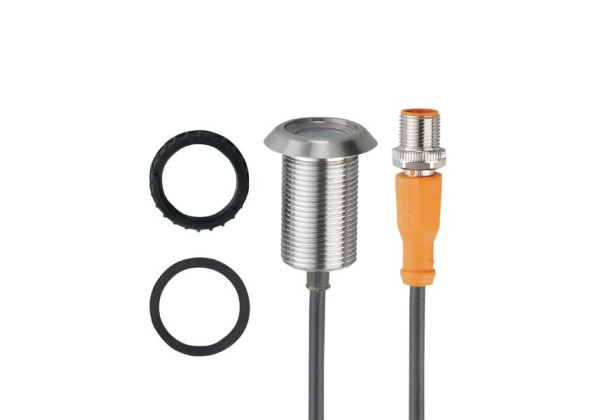

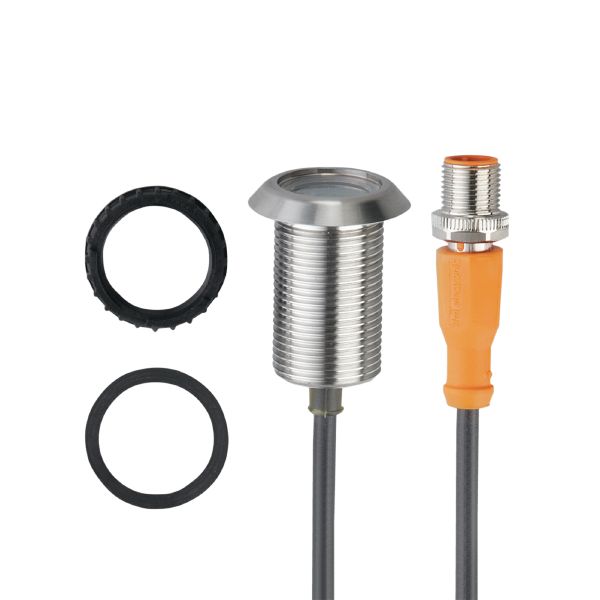

KT6301 Capacitive illuminated pushbutton KTMEF-EMMFFKG/US/IO
Brand: IFM Electronic
Code: KT6301
- Ergonomic working by softly touching the sensor
- Start-up delay prevents unintentional switching
- Plant condition indicated via RGB LEDs
- Various setting options such as colour, NO/NC or triggering via IO-Link
- Adjustable brightness and sensitivity in wet environments or when operators wear gloves
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed |
| Communication interface | IO-Link |
| Dimensions [mm] | Ø 32 / L = 39 |
Application
| Operating principle | dynamic; (static; bistable parameterisable) |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 30 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed |
| Permanent current rating of switching output DC [mA] | 150 |
| Short-circuit protection | yes |
| Overload protection | yes |
Response times
| Response time [ms] | 35 |
|---|
Software / programming
| Parameter setting options | normally open / normally closed; PnP/nPn; statisch / dynamisch / bistabil / Ein- Ausschaltverzögerung; brightness; Aktivierungs- Operations- Inputfarbe; Sensitivität |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Type 0 Generic Profiled Sensor; Identification and Diagnosis; Fixed Switching Signal Channel | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Process data analogue | 1 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 3.5 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 65; IP 67; IP 69K; (on the front) |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 318 |
Mechanical data
| Weight [g] | 80.5 |
|---|---|
| Dimensions [mm] | Ø 32 / L = 39 |
| Materials | housing: stainless steel (1.4305 / 303); active face: PA Grilamid TR 90UV |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KT6301-00 — 25.02.2019 —
