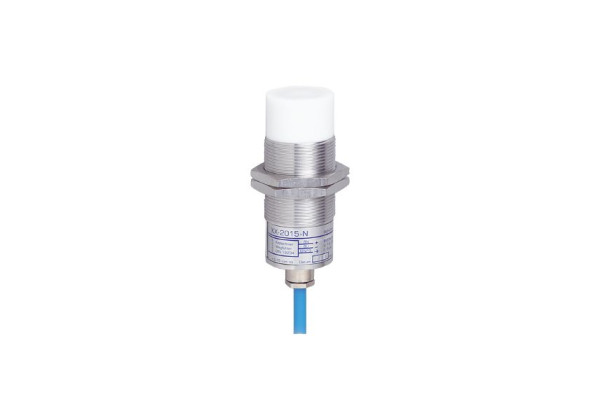

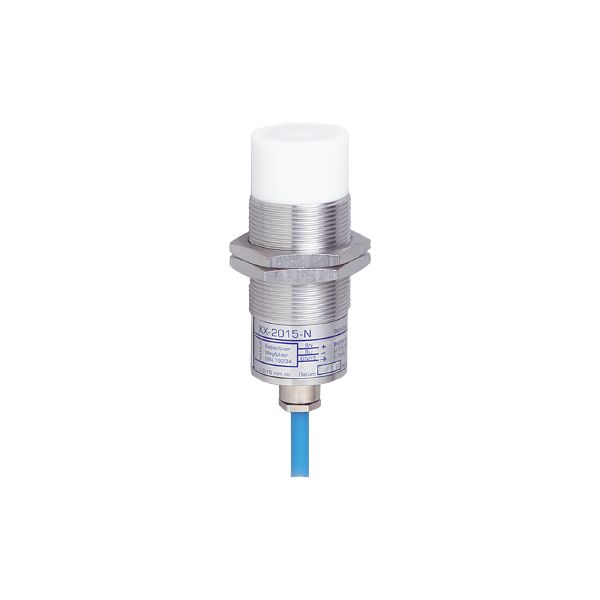

KX5001 - efector100-KX-2015-N/NI/1D/1G
Brand: IFM Electronic
Code: KX5001
- For applications in hazardous areas
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status by LED
- For connection to intrinsically safe circuits
- High mechanical stability thanks to robust metal housing
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 15 |
| Housing | threaded type |
| Dimensions [mm] | M34 x 1.5 / L = 92 |
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5...15 |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | I |
| Measuring principle | capacitive |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Switching frequency DC [Hz] | 40 |
Detection zone
| Sensing range [mm] | 15 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| Approval | DMT 01 ATEX E 020 | ||
|---|---|---|---|
| ATEX marking | | ||
| | |||
| EMC |
| ||
| MTTF [years] | 838 |
Safety classification
| Max. internal capacitance [nF] | 375 |
|---|---|
| Max. internal inductance [µH] | 1 |
Mechanical data
| Weight [g] | 421.5 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M34 x 1.5 / L = 92 |
| Thread designation | M34 x 1.5 |
| Materials | brass white bronze coated; sensing face: PTFE |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 3 x 0.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — KX5001 — 13.08.2012 —
