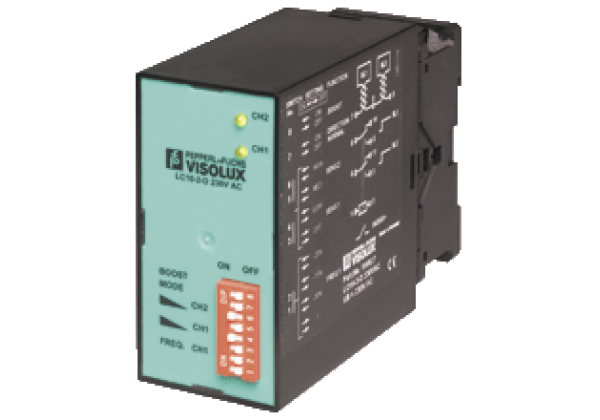

Loop detector LC10-2-D 230 VAC

Loop detector LC10-2-D 230 VAC

Code: LC10-2-D 230 VAC

Sensor system for vehicle detection, Complete control interface for inductive loops laid beneath the surface, Reliable detection with long service life, Boost function for increasing sensitivity, Test function, Operating voltage: 230 V AC ( galvanically isolated from loop )

Datasheet excerpt: Technical data of  LC10-2-D 230 VAC

Product Description
Universal sensor system for detecting vehicles
General specifications
MarkingCE
Operating modeContinuous signal / Direction detection
Functional safety related parameters
MTTFd306 a
Mission Time (TM)20 a
Indicators/operating means
Control elementsDIP-switch
Switching stateLED
Electrical specifications
Operating voltage230 V AC ( galvanically isolated from loop )
Ripple-15 %/+10 %
Power consumption2.2 VA
Calibration time2 s
Loop inductivity100... 1000 µH
Loop frequency20... 120 kHz
Input
Number of channels2
Output
Signal output2 relay outputs
Switching voltage250 V AC
Switching current6 A
Pulse lengthperiod
Response time200 ms
Ambient conditions
Ambient temperature-20... 70 °C (-4... 158 °F)
Storage temperature-40... 70 °C (-40... 158 °F)
Mechanical specifications
Degree of protectionIP30
ConnectionPlug socket ; 11-pin Terminal connection ≤ 1.5 mm2

Classifications

SystemClasscode
ECLASS 13.027280490
ECLASS 12.027280490
ECLASS 11.027280490
ECLASS 10.0.127280490
ECLASS 9.027280490
ECLASS 8.027280490
ECLASS 5.127281001
ETIM 9.0EC002887
ETIM 8.0EC002714
ETIM 7.0EC002714
ETIM 6.0EC002714
ETIM 5.0EC001442
UNSPSC 12.146161510
