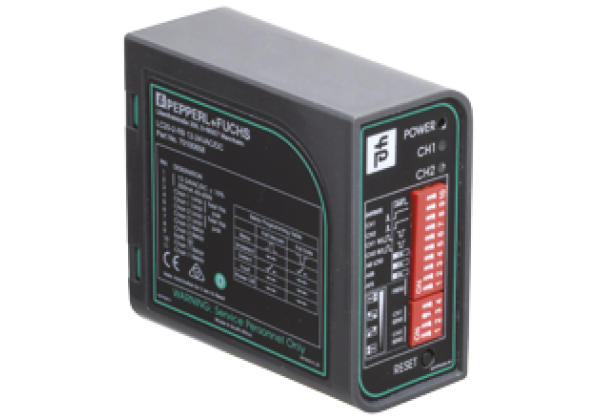

Loop detector LC20-2-RB 230VAC
Brand: Pepperl+Fuchs
Code: LC20-2-RB 230VAC
Sensor system for vehicle detection, Complete control interface for inductive loops laid beneath the surface, Reliable detection with long service life, Boost function for increasing sensitivity, Test function, Operating voltage: 230 V AC ±15 %
Datasheet excerpt: Technical data of LC20-2-RB 230VAC
| Product Description |
|---|
| Sensor system for detecting vehicles, two loops, plug-in base mounting, 230 VAC |
| General specifications | ||
|---|---|---|
| Adjustment range | Sensitivity ΔL/L 4x adjustable on the front panel 0.01 %... 0.1 % with ASB overwrite option | |
| Function principle | Inductive loop | |
| Marking | CE | |
| Presence time | One hour for 3 % ΔL/L and option for permanent presence | |
| Self-tuning range | 20 μH... 1500 μH | |
| Operating frequency | 4x adjustable on the front panel: 12 kHz... 80 kHz (with AFS switched off) | |
| Operating mode | Pulsed and continuous signal | |
| Indicators/operating means | ||
| Function indicator | 1 x red LED: Power supply/Status , 2 x green LED: Channel status | |
| Control elements | DIP-switch , Refer to the documentation for functions | |
| Switching state | LED | |
| Electrical specifications | ||
| Operating voltage | 230 V AC ±15 % | |
| No-load supply current | ∅ 10.9 mA | |
| Power consumption | ∅ 2.5 VA | |
| Input | ||
| Number of channels | 2 | |
| Output | ||
| Signal output | One configurable relay output per channel | |
| Switching current | Relay outputs 1 A at 230 V AC | |
| Pulse length | 150 ms or 250 ms (selected via switch) | |
| Response time | 200 ms... 300 ms | |
| Directive conformity | ||
| Radio and telecommunication terminal equipment | 2014/53/EU | |
| Approvals and certificates | ||
| FCC approval | FCC 47 CFR Part 15 | |
| Ambient conditions | ||
| Operating temperature | -40... 70 °C (-40... 158 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Relative humidity | max. 90 % , non-condensing | |
| Mechanical specifications | ||
| Degree of protection | IP30 | |
| Connection | 11-pin plug-in base | |
| Material | ||
| Housing | ABS, anthracite | |
| Installation | 11-pin plug-in base | |
| Mass | 250 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280490 |
| ECLASS 12.0 | 27280490 |
| ECLASS 11.0 | 27280490 |
| ECLASS 10.0.1 | 27280490 |
| ECLASS 9.0 | 27280490 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27281001 |
| ETIM 9.0 | EC002887 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC001442 |
| UNSPSC 12.1 | 46161510 |
