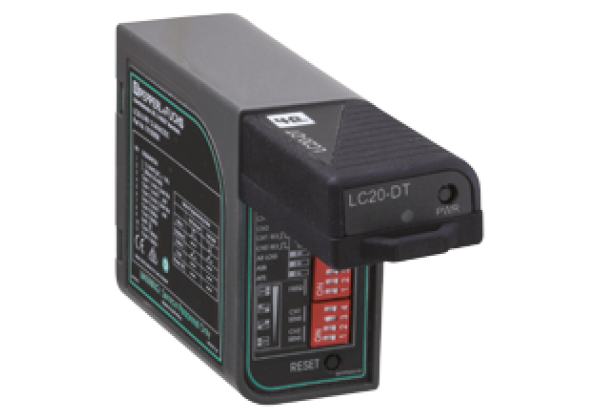

Diagnostic unit for loop detector LC20-DT
Brand: Pepperl+Fuchs
Code: LC20-DT
Compact, easy-to-operate Bluetooth device, Generation of a full installation report in case of site sign-off, Performance checks on loop and installation, Compatible with all LC20 loop detectors, Operating range of up to 17 m
Datasheet excerpt: Technical data of LC20-DT
| Product Description |
|---|
| Bluetooth diagnostic unit for installation and diagnostics of LC20 detection loops |
| General specifications | ||
|---|---|---|
| Function principle | Inductive loop | |
| Marking | CE | |
| Operating frequency | 2.4 GHz (ISM band) | |
| Indicators/operating means | ||
| Function indicator | 1 x two-colored LED (red and green) , red flashing: ready for connecting via Bluetooth , green flashing: connected via Bluetooth | |
| Electrical specifications | ||
| Operating duration | Battery life (standby): ≥ 1250 days Battery life (continuous operation): ≥ 17 hours | |
| Power supply | battery operated 1 x 3 V , 240 mAh coin cell battery (CR2032) | |
| Interface | ||
| Interface type | Bluetooth dongle | |
| Physical | Bluetooth v4.0 Detection range ≤ 17 m | |
| Directive conformity | ||
| Radio and telecommunication terminal equipment | 2014/53/EU | |
| System requirements | ||
| Operating system | iOs v8.0 or higher , Android v4.4 or higher | |
| Ambient conditions | ||
| Ambient temperature | -5... 80 °C (23... 176 °F) | |
| Storage temperature | -20... 80 °C (-4... 176 °F) | |
| Mechanical specifications | ||
| Mass | 30 g including CR2032 coin cell battery | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280490 |
| ECLASS 12.0 | 27280490 |
| ECLASS 11.0 | 27280490 |
| ECLASS 10.0.1 | 27280490 |
| ECLASS 9.0 | 27280490 |
| ECLASS 8.0 | 27280490 |
| ECLASS 5.1 | 27281001 |
| ETIM 9.0 | EC002887 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC001442 |
| UNSPSC 12.1 | 46161510 |
