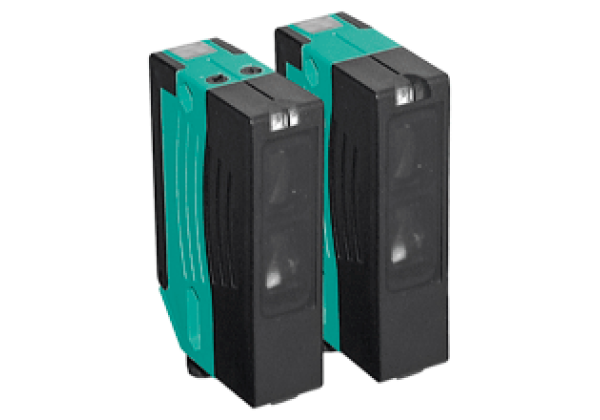

Thru-beam sensor LD28/LV28-F1-3974/47/82b/112
Brand: Pepperl+Fuchs
Code: LD28/LV28-F1-3974/47/82b/112
Universal thru-beam sensor, large housing design, 30 m detection range, red light, 25 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, pre-fault output, M12 plug, Ultra bright LEDs for power on, weak signal indication and switching state, Highly visible LED as alignment aid in receiver optics, Emitter deactivation, Not sensitive to ambient light, even with switched energy saving lamps, Extra vibration proof version
Datasheet excerpt: Technical data of LD28/LV28-F1-3974/47/82b/112
| Product Description |
|---|
| Universal thru-beam sensor, large housing design, 30 m detection range, red light, 25 kHz transmission frequency, light/dark on, DC version, 2 PNP outputs, test input, pre-fault output, M12 plug |
| System components | ||
|---|---|---|
| Emitter | LD28-F1-3974/76a/112 | |
| Receiver | LV28-F1-3974/47/82b/112 | |
| General specifications | ||
| Effective detection range | 0... 30 m | |
| Threshold detection range | 40 m | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Alignment aid | LED red (in receiver lens) illuminated constantly: beam is interrupted, flashes: reaching switching point, off: sufficient stability control | |
| Transmitter frequency | F1 = 25 kHz | |
| Diameter of the light spot | approx. 0.6 m at 30 m | |
| Opening angle | Emitter 1.2°, Receiver 5° | |
| Ambient light limit | 50000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 620 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 90 % | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | LED yellow: 1. LED lit constantly: signal > 2 x switching point (function reserve) 2. LED flashes: signal between 1 x switching point and 2 x switching point 3. LED off: signal < switching point | |
| Control elements | sensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | Emitter: ≤ 50 mA Receiver: ≤ 35 mA | |
| Input | ||
| Test input | emitter deactivation at +UB (Imax. < 3 mA at 30 V DC) | |
| Output | ||
| Stability alarm output | 1 PNP transistor, short-circuit protected, protected from reverse polarity, open collector, Umax = 30 V DC, Imax = 0.2 A The output becomes inactive if the signal level has fallen below the function reserve for approx. 10 s (yellow and red LEDs flash). If the light beam is interrupted four times during this period, the output immediately becomes inactive. | |
| Switching type | light/dark on switchable | |
| Signal output | 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 65.5 mm | |
| Degree of protection | IP67 | |
| Connection | Metal connector, M12, 5-pin, 90° rotatable | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | Plastic pane | |
| Mass | 140 g (emitter and receiver) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
