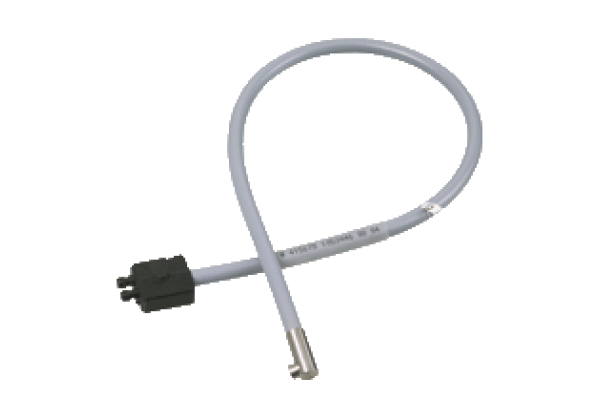

Glass fiber optic LLR 04-1,6-0,8-QW 1X4
Brand: Pepperl+Fuchs
Code: LLR 04-1,6-0,8-QW 1X4
Glass fiber optic - diffuse with metal silicone covering, Series: Glass fiber optic - diffuse, End piece: Thread / cylindrical right angle, Sheathing: Metal-silicon, Special features: High temperature, Device series: MLV41-LL
Datasheet excerpt: Technical data of LLR 04-1,6-0,8-QW 1X4
| Product Description |
|---|
| Glass fiber optic - diffuse with metal silicone covering |
| General specifications | ||
|---|---|---|
| Fiber optic length | 800 mm | |
| Fiber optic diameter | 7.3 mm | |
| Adapter form | 04 | |
| End piece | Thread / cylindrical right angle | |
| Bending radius | min. 25 mm | |
| Fiber bundle diameter | 1 x 2.15 mm / optical face: 1 x 3.6 mm2 | |
| Fiber configuration | statistical mixed | |
| Opening angle | approx. 69 ° | |
| Approvals and certificates | ||
| Approvals | CE | |
| Ambient conditions | ||
| Ambient temperature | -20... 85 °C (-4... 185 °F) -40... 180 °C (-40... 356 °F) | |
| Storage temperature | -20... 85 °C (-4... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Material | ||
| Optical face | glass | |
| Sheathing | Metal-silicon | |
| Core | Glass fiber | |
| End piece | Stainless steel 1.4305 / AISI 303 | |
| Adapter | PVC | |
| Extraction force | at probe at 20°C: 120 N | |
| Fiber optic amplifiers | ||
| Device series | MLV41-LL | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
