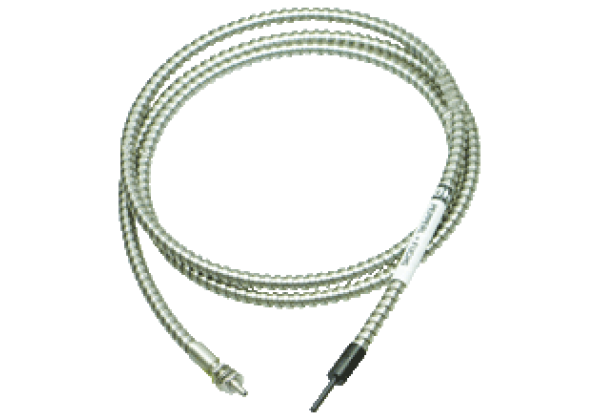

Glass fiber optic LME 00-1,0-1,0-K151
Brand: Pepperl+Fuchs
Code: LME 00-1,0-1,0-K151
Glass fiber optic - thru-beam, Series: Glass fiber optic - thru-beam, End piece: thread, Sheathing: stainless steel 1.4301 / AISI 304, Special features: High temperature, Device series: SU18 ; SU18/35 ; SU19
Datasheet excerpt: Technical data of LME 00-1,0-1,0-K151
| Product Description |
|---|
| Glass fiber optic - thru-beam |
| General specifications | ||
|---|---|---|
| Detection range | SU18: 144 mm SU18/35: 892 mm SU19: 144 mm | |
| Fiber optic length | 1016 mm | |
| Fiber optic diameter | 1 mm | |
| Adapter form | 00 | |
| End piece | thread | |
| Bending radius | min. 30 mm | |
| Opening angle | approx. 68 ° | |
| Ambient conditions | ||
| Ambient temperature | -55... 200 °C (-67... 392 °F) [Covering] -55... 250 °C (-67... 482 °F) [End head] | |
| Mechanical specifications | ||
| Material | ||
| Optical face | glass | |
| Sheathing | stainless steel 1.4301 / AISI 304 | |
| Core | glass | |
| End piece | stainless steel 1.4301 / AISI 304 | |
| Adapter | plastic | |
| General information | ||
| Scope of delivery | Fiber optic cables packaged individually | |
| Fiber optic amplifiers | ||
| Device series | SU18 ; SU18/35 ; SU19 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
