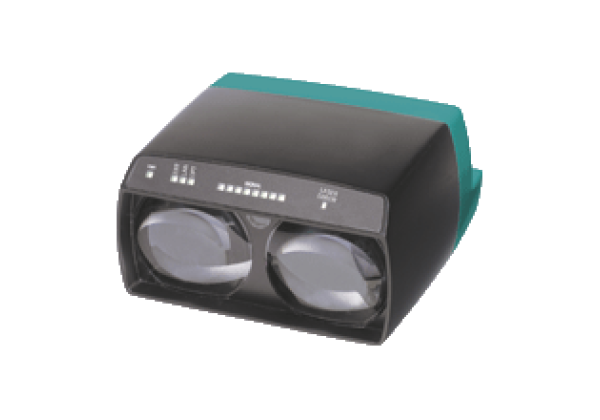

Optical data coupler LS684-DA-EN/F2
Brand: Pepperl+Fuchs
Code: LS684-DA-EN/F2
Optical data coupler for fast Ethernet, 150 m detection range, red light, 100 Mbit/s data rate, M12 plug, Independent of Ethernet protocol, Optimized for real-time Ethernet such as PROFINET IRT and EtherCAT, TCP/IP, PROFINET, PROFIsafe, EtherCAT, FSoE, EtherNet/IP™, Ethernet POWERLINK etc., No parameterization, Line indicator for signal strength
Datasheet excerpt: Technical data of LS684-DA-EN/F2
| Product Description |
|---|
| Optical data coupler for fast Ethernet, 150 m detection range, red light, 100 Mbit/s data rate, M12 plug |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 150 m | |
| Threshold detection range | 180 m | |
| Light source | laser diode | |
| Light type | modulated visible red light | |
| Laser nominal ratings | ||
| Note | VISIBLE LASER RADIATION , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS | |
| Laser class | 1M | |
| Wave length | 660 nm | |
| Beam divergence | 15 mrad | |
| Pulse length | 8 ns | |
| Repetition rate | 62.5 MHz | |
| Maximum optical power output | 60 mW | |
| Diameter of the light spot | 1.5 m at a distance of 100 m | |
| Opening angle | 1 ° | |
| Ambient light limit | > 10000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 58.6 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Data flow indicator | LED green: OPTO-Link LED yellow: LAN-Link LED red: ERROR | |
| Function indicator | Signal strength (8 LED: Red, yellow, green) | |
| Electrical specifications | ||
| Operating voltage | 18... 30 V DC | |
| No-load supply current | 200 mA | |
| Data rate | 100 MBit/s (Fast Ethernet) | |
| Signal delay | 2.9 µs (across the entire effective operating distance) | |
| Interface | ||
| Interface type | 100 BASE-TX | |
| Output | ||
| Stability alarm output | 1 PNP, inactive when falling short of the stability control , short-circuit protected, max. 200 mA | |
| Conformity | ||
| Laser safety | EN 60825-1:2007 | |
| Approvals and certificates | ||
| UL approval | cULus Listed | |
| FDA approval | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Ambient conditions | ||
| Ambient temperature | -10... 50 °C (14... 122 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Material | ||
| Housing | ABS / PC | |
| Optical face | plastic | |
| Mass | 700 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 43201404 |
