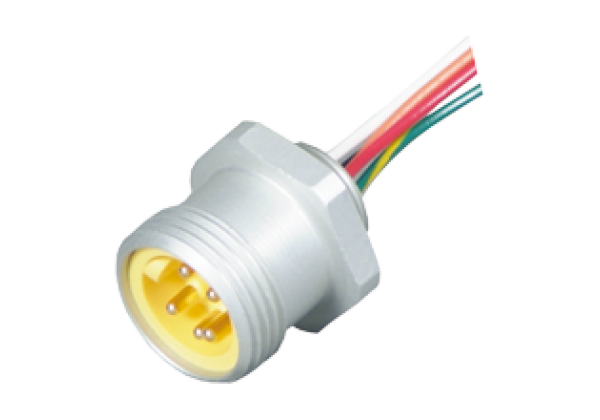

Male receptacle M16-V95-G-S-.15M
Brand: Pepperl+Fuchs
Code: M16-V95-G-S-.15M
Male receptacle, 7/8 inch UN2 /M16, 5-pin
Datasheet excerpt: Technical data of M16-V95-G-S-.15M
| Product Description |
|---|
| Male receptacle, 7/8 inch UN2 /M16, 5-pin |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Construction type | straight | |
| Connection 1 | plug | |
| Threading 1 | 7/8 inch | |
| Electrical specifications | ||
| Operating voltage | max. 300 V | |
| Operating current | max. 4 A | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -40... 105 °C (-40... 221 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP69 | |
| Connection | 7/8 inch-16 UN 2 A | |
| Material | clear anodized aluminum | |
| Contacts | copper alloy gold plated | |
| Sleeve connector | yellow PVC | |
| Seal | O-ring: BUNA-N | |
| Cable | ||
| Cores | 5 x 0.34 mm2 / 22 AWG | |
| Length | 0.15 m | |
| Note | M16 x 1.5 installation thread | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
