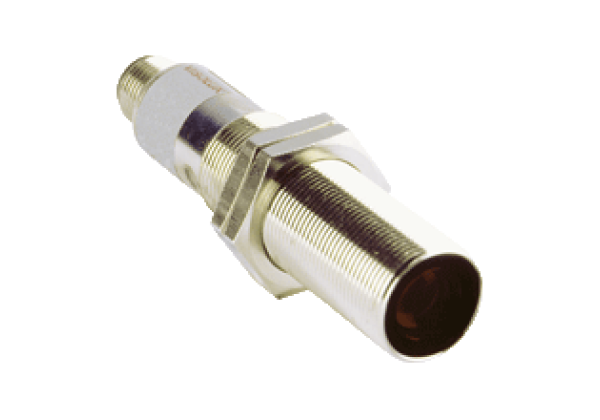

Laser pointer M18-2500-RT-LAS-P/92
Brand: Pepperl+Fuchs
Code: M18-2500-RT-LAS-P/92
Laser pointer, Visible red light, pulsed LASER light, Laser class 1, eyesafe
Datasheet excerpt: Technical data of M18-2500-RT-LAS-P/92
| Product Description |
|---|
| Laser pointer |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 2.5 m | |
| Threshold detection range | 18 m | |
| Light source | laser diode | |
| Light type | modulated visible red light | |
| Laser nominal ratings | ||
| Note | LASER LIGHT , DO NOT STARE INTO BEAM | |
| Laser class | 1 | |
| Wave length | 650 nm | |
| Beam divergence | 1.5 mrad | |
| Pulse length | 15 µs | |
| Repetition rate | 10 kHz | |
| max. pulse energy | < 10.2 nJ | |
| Diameter of the light spot | approx. 2.5 mm at detection range 2.5 m | |
| Optical face | frontal | |
| Functional safety related parameters | ||
| MTTFd | 520.4 a | |
| Mission Time (TM) | 7 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | emitter ≤ 25 mA | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Laser safety | IEC 60825-1:2007 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Shock and impact resistance | IEC / EN 60068, half-sine, 30 g in X, Y and Z direction | |
| Vibration resistance | IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0... 50 °C (32... 122 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | glass | |
| Connector | metal | |
| Mass | 45 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273607 |
| ECLASS 12.0 | 27273607 |
| ECLASS 11.0 | 27273607 |
| ECLASS 10.0.1 | 27273607 |
| ECLASS 9.0 | 27273607 |
| ECLASS 8.0 | 27279210 |
| ECLASS 5.1 | 27279210 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 23153017 |
