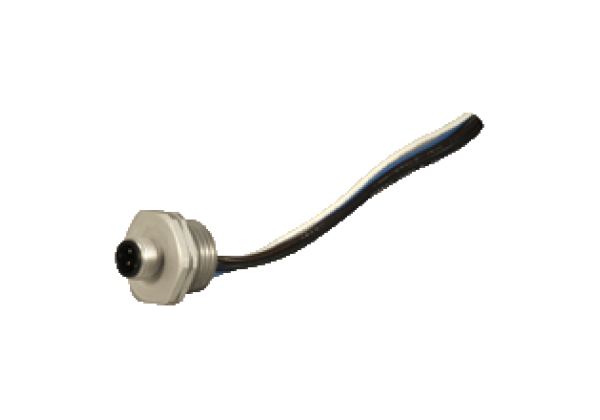

Male receptacle M20-V1-G-S-.3M
Brand: Pepperl+Fuchs
Code: M20-V1-G-S-.3M
Male receptacle
Datasheet excerpt: Technical data of M20-V1-G-S-.3M
| Product Description |
|---|
| Male receptacle |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Construction type | straight | |
| Connection 1 | Male connector | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| Threading 2 | M20 | |
| Electrical specifications | ||
| Operating voltage | max. 300 V AC/DC | |
| Operating current | max. 4 A | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -40... 105 °C (-40... 221 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Single strand leads | |
| Material | anodized aluminum | |
| Contacts | Gold plated copper alloy | |
| Sleeve connector | Polyamide (PA) | |
| Seal | NBR | |
| Cable | ||
| Cores | 4 x 0.34 mm2 , 22 AWG | |
| Length | 0.3 m | |
| Note | M20 x 1.5 installation | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
