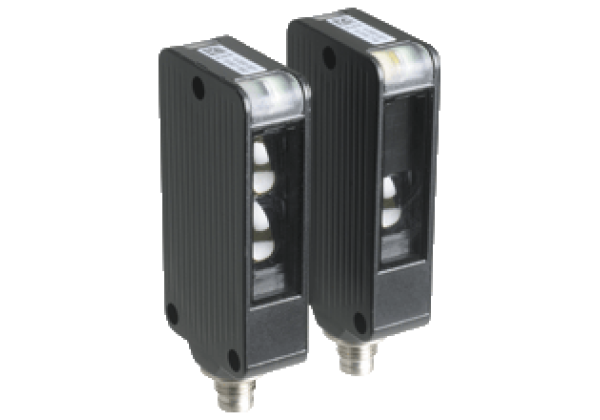

Thru-beam sensor M41/MV41/25/76a/95/136
Brand: Pepperl+Fuchs
Code: M41/MV41/25/76a/95/136
Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M8 plug, Rugged series in corrosion-resistant metal housing, Long sensor range with high power mode, Resistant against noise: reliable operation under all conditions, Clear and functional display concept for the operating modes, Aluminum housing with high quality Delta-Seal coated
Datasheet excerpt: Technical data of M41/MV41/25/76a/95/136
| Product Description |
|---|
| Robust thru-beam sensor, compact housing design, 16 m detection range, emission frequency F1, red light and infrared light, light on, 2 push-pull outputs, test input, M8 plug |
| System components | ||
|---|---|---|
| Emitter | M41/76a/95 | |
| Receiver | MV41/25/95/136 | |
| General specifications | ||
| Effective detection range | 0... 16 m | |
| Threshold detection range | normal mode: 25 m High power mode: 35 m (Control input at UB+) | |
| Light source | normal mode: LED High power mode: LED+IRED | |
| Light type | normal mode: modulated visible red light High power mode: Red and infrared, modulated light | |
| Diameter of the light spot | approx. 500 mm at detection range 16 m | |
| Opening angle | approx. 1.5 ° | |
| Optical face | frontal | |
| Ambient light limit | 50000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 844 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the operating reserve ; OFF when light beam is interrupted | |
| Control elements | sensitivity adjustment (receiver) | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| Ripple | max. 10 % | |
| No-load supply current | max. 30 mA | |
| Input | ||
| Test input | emitter deactivation at +UB (emitter) | |
| Control input | High power mode activation with +UB (emitter) | |
| Output | ||
| Switching type | light-on | |
| Signal output | 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 60947-5-2:2007 | |
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 | |
| Standards | UL 508 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 75 °C (-40... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 31 mm | |
| Housing height | 56.5 mm | |
| Housing depth | 13.6 mm | |
| Degree of protection | IP67 | |
| Connection | M8 x 1 connector, 4-pin | |
| Material | ||
| Housing | Aluminum , Delta-Seal coated | |
| Optical face | glass pane | |
| Connector | metal | |
| Mass | 50 g (device) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
