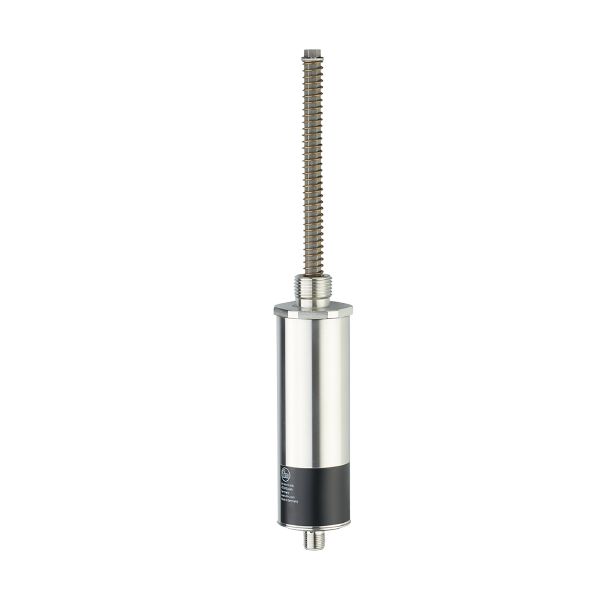

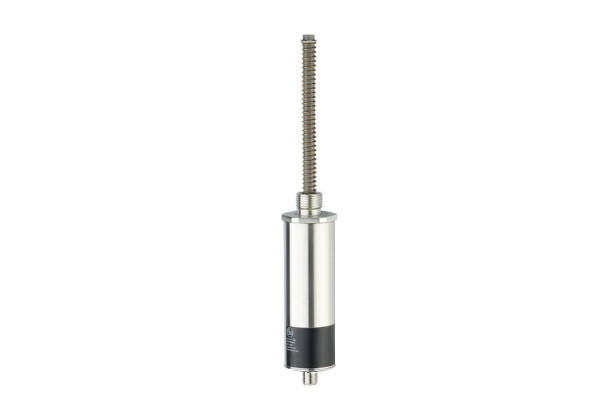

M95009 magnetic sensor with three switch points for monitoring locked states M9G4085PARKG/A/US
Brand: IFM Electronic
Code: M95009
- For the reliable detection of the locked state of rotors
- For use in wind turbines
- With three switching outputs and programmable switch points
- Wide operating temperature range
- High overall accuracy and long-term stability
Product characteristics
| Output function | 2 x normally closed / 1 x normally open |
|---|---|
| Dimensions [mm] | Ø 40 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC; ("supply class 2" to cULus) |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output function | 2 x normally closed / 1 x normally open |
|---|---|
| Max. voltage drop switching output DC [V] | 5.4 |
| Minimum load current [mA] | 2 |
| Max. leakage current [mA] | 0.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 0.5 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Measuring range [mm] | 52...137 |
|---|
Accuracy / deviations
| Hysteresis [mm] | 0.5 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|---|
| Protection | IP 20; IP 67; (plunger side: IP 20; connector side: IP 67) |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 277 | ||||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 691 |
|---|---|
| Dimensions [mm] | Ø 40 |
| Materials | brass white bronze coated; plunger: stainless steel; LED window: PA |
| Tightening torque [Nm] | < 20 |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — M95009-00 — 13.04.2023 —
