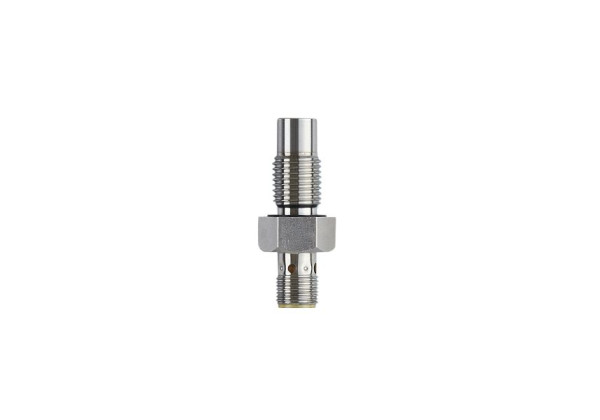

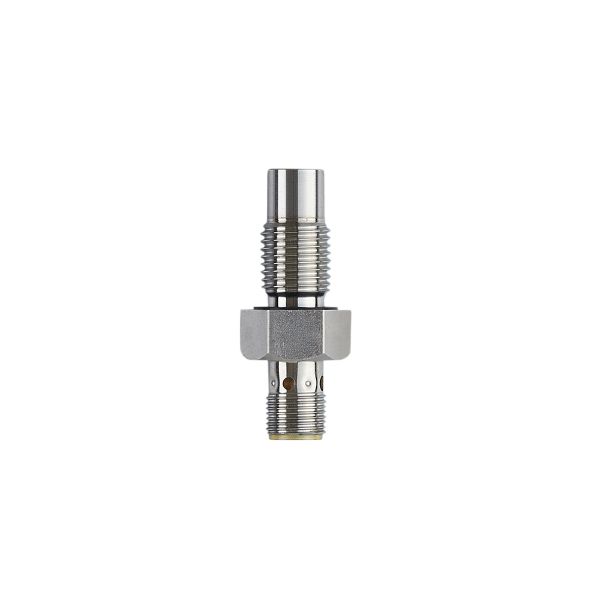

M9H200 - M9B3002BBPKG/B/AM/500 /US

Code: M9H200

Pressure-resistant up to 500 bar
Metal sensing face for heavy duty
High bursting pressure
Housing design to industrial standard
Lifespan of more than 10 million pressure cycles

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M14 x 1.5 / L = 53

Application

Special feature	Full-metal housing
Application	hydraulic cylinders
Media	detects ferrous metals
Min. bursting pressure [bar]	2000
Pressure rating [bar]	500

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 23
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1.6
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	10
Repeatability [% of Sr]	10

Operating conditions

Pressure peak [bar]	1000
Ambient temperature [°C]	-25...85
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B
DIN ISO 11452-5	100 V/m

Vibration resistance

EN 60068-2-6 Fc

20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C

Continuous shock resistance

EN 60068-2-27 Ea

40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C

MTTF [years]

2130

UL approval

UL Approval no.

C005

Mechanical data

Weight [g]	41.8
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M14 x 1.5 / L = 53
Thread designation	M14 x 1.5
Materials	housing: stainless steel stainless steel (1.4404 / 316L); O-ring: FKM; LED window: PEI
Tightening torque [Nm]	< 25
Full-metal housing	yes

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A
