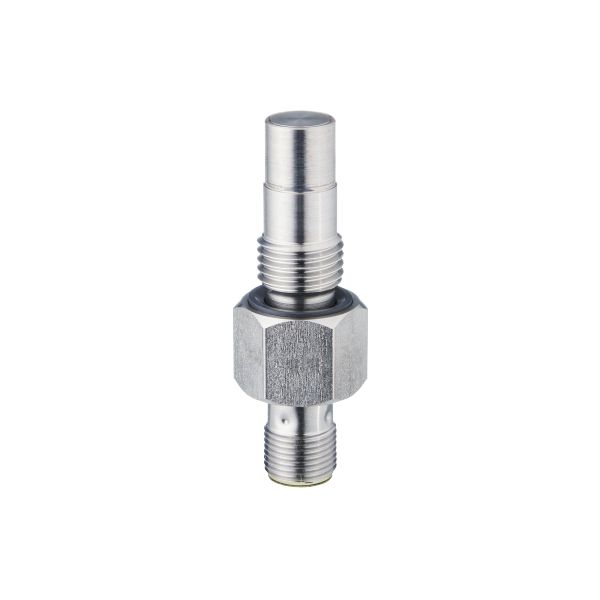

M9H207 Pressure-resistant position sensor for hydraulic cylinders M9K3002BBPKG/B/AM/500/US

Code: M9H207

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	2
Housing	threaded type
Dimensions [mm]	M14 x 1.5 / L = 53

Application

Special feature

Gold-plated contacts; Full-metal housing

Application

hydraulic cylinders

Media

detects ferrous metals

Min. bursting pressure [bar]

2000

Pressure rating

dynamic [bar]	500
static [bar]	1000

Electrical data

Operating voltage [V]	10...36 DC
Rated insulation voltage [V]	60
Current consumption [mA]	< 23
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 300

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1.6
Max. leakage current [mA]	0.1
Permanent current rating of switching output DC [mA]	200
Short-time current rating of switching output [mA]	200
Switching frequency DC [Hz]	1000
Type of short-circuit protection	pulsed
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %
Operating distance [mm]	0...1.62

Accuracy / deviations

Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-10...10
Repeatability [% of Sr]	< 10

Operating conditions

Ambient temperature [°C]	120
Protection	IP 65; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B
DIN ISO 11452-5	100 V/m

Vibration resistance

EN 60068-2-6 Fc

20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C

Shock resistance

EN 60068-2-27 Ea

100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C

Fast temperature change

EN 60068-2-14 Na

TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles

MTTF [years]

1701

Mechanical data

Weight [g]	54.8
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M14 x 1.5 / L = 53
Thread designation	M14 x 1.5
Materials	housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); O-ring: FPM 90
Tightening torque [Nm]	< 25
Full-metal housing	yes

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Moulded body: PEI; Contacts: gold-plated
