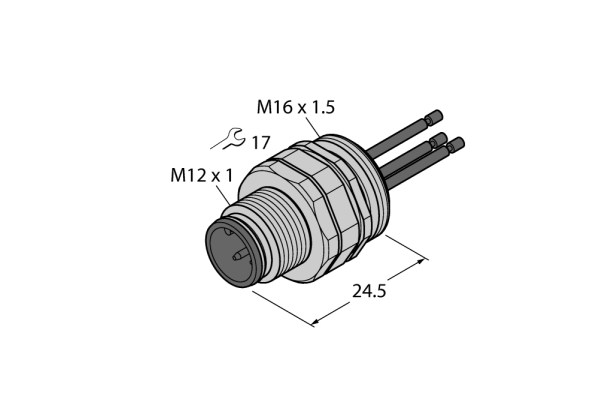

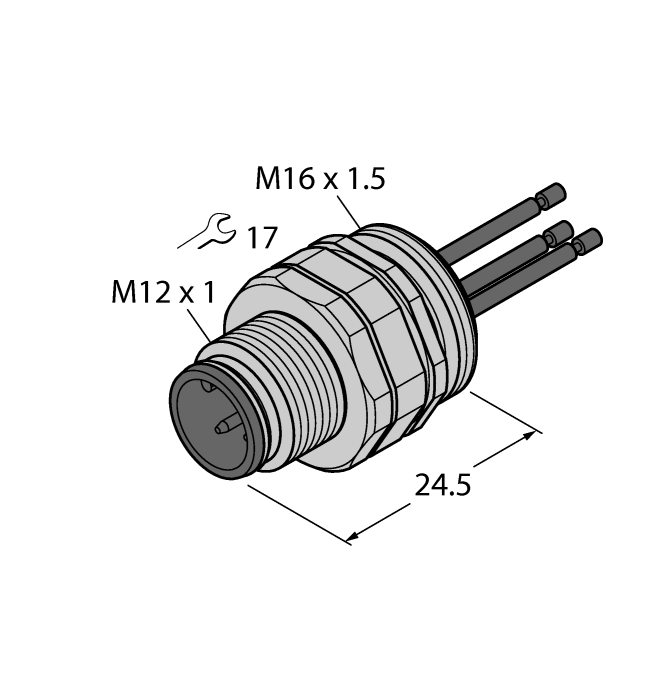

Male Receptacle with Stranded Wires, Front-mounted EC-FSD4.5-0.5/16
Brand: TURCK
Code: 6934168
- Application
- Signal
- Connector A
- Male, M12 × 1, Straight, A-coded
- Number of pins
- 5
- Receptacle housing material A
- Brass
- Screw-in thread
- M16 × 1.5
- Voltage (V)
- 60
- Current (A)
- 4
- Approvals
- CE
- Core cross-section (mm²)
- 0.34
- Connection mode
- Wire connection
