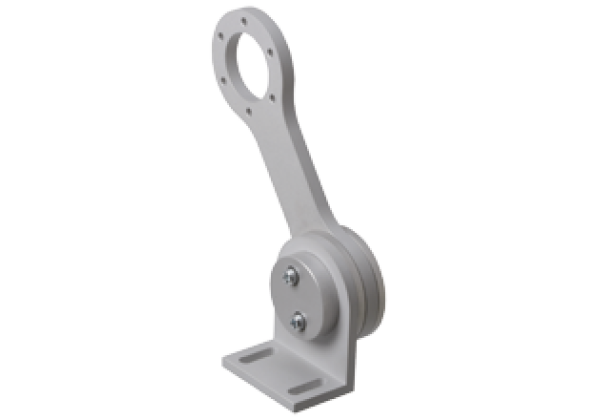

Spring arm MBT-36ALS120
Brand: Pepperl+Fuchs
Code: MBT-36ALS120
Spring arm for larger spring deflections for diameter 58 rotary encoder with clamping flange
Datasheet excerpt: Technical data of MBT-36ALS120
| Product Description |
|---|
| Spring arm for larger spring deflections for diameter 58 rotary encoder with clamping flange |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Mechanical specifications | ||
| Material | anodized aluminum | |
| Mass | 380 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27270590 |
| ECLASS 5.1 | 27270590 |
| ETIM 9.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
