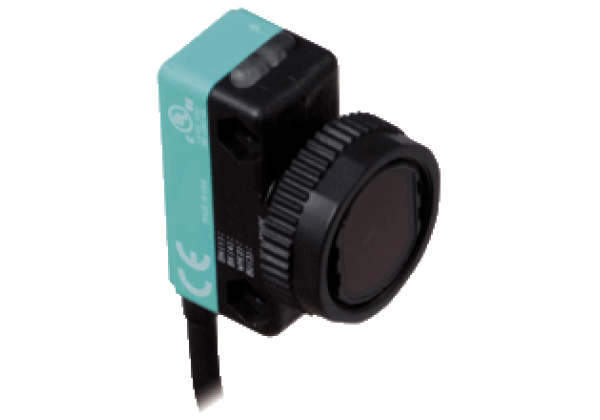

Thru-beam sensor emitter MD17/115
Brand: Pepperl+Fuchs
Code: MD17/115
Thru-beam sensor transmitter, small design, infrared light, 20 m range, cable, Emitter, Compact, versatile housing, 360° high visibility LEDs, 2 m cable length
Datasheet excerpt: Technical data of MD17/115
| Product Description |
|---|
| Thru-beam sensor transmitter, small design, infrared light, 20 m range, cable |
| System components | ||
|---|---|---|
| Emitter | MD17/115 | |
| Receiver | MV17/115 | |
| General specifications | ||
| Effective detection range | 0... 15 m | |
| Threshold detection range | 20 m | |
| Reference target | receiver | |
| Light source | IRED | |
| Light type | Infrared LED | |
| Ambient light limit | ≤ 10000 Lux | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA | |
| Operating current | ||
| Time delay before availability | ≤ 200 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 IEC 60947-5-2 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20... 55 °C (-4... 131 °F) | |
| Storage temperature | -20... 70 °C (-4... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 15 mm | |
| Housing height | 34.5 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | ABS | |
| Optical face | Acrylic | |
| Mass | 40 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
