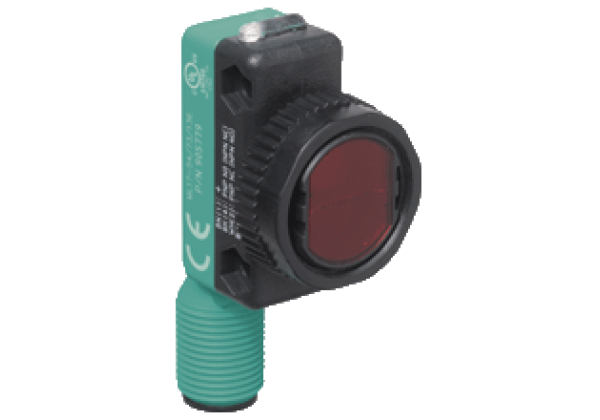

Thru-beam sensor emitter MD17/73

Code: MD17/73

Emitter, Compact, versatile housing, 360° high visibility LEDs, M12 male connector

Datasheet excerpt: Technical data of MD17/73

System components
Emitter		MD17/73
Receiver		MV17/73/136
General specifications
Effective detection range		0... 15 m
Threshold detection range		20 m
Reference target		receiver
Light source		IRED
Light type		Infrared LED
Ambient light limit		≤ 10000 Lux
Indicators/operating means
Operation indicator		LED green
Function indicator
Electrical specifications
Operating voltage		10... 30 V DC , class 2
Ripple		max. 10 %
No-load supply current		< 25 mA
Operating current
Protection class
Time delay before availability		≤ 200 ms
Output
Switching type
Signal output
Conformity
Product standard		EN 60947-5-2 IEC 60947-5-2
Approvals and certificates
CE conformity		CE
EAC conformity		TR CU 020/2011
UL approval		cULus
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-20... 55 °C (-4... 131 °F)
Storage temperature		-20... 70 °C (-4... 158 °F)
Mechanical specifications
Housing width		15 mm
Housing height		34.5 mm
Degree of protection		IP67
Connection		M12 x 1 connector , 4-pin
Material
	Housing	ABS
	Optical face	Acrylic
Mass		approx. 9 g
