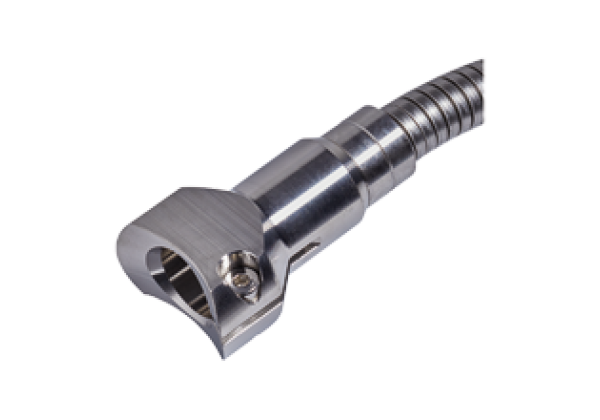

Flexible metal conduit MEC-VIM8-V4A-9.5
Brand: Pepperl+Fuchs
Code: MEC-VIM8-V4A-9.5
Flexible metal conduit 9.5 m for VIM8 vibration sensors
Datasheet excerpt: Technical data of MEC-VIM8-V4A-9.5
| Product Description |
|---|
| Flexible metal conduit 9.5 m for VIM8 vibration sensors |
| General specifications | ||
|---|---|---|
| Suitable components | VIM8* vibration sensors | |
| Ambient conditions | ||
| Ambient temperature | -40... 125 °C (-40... 257 °F) | |
| Mechanical specifications | ||
| Cable gland | ||
| Thread type | metric | |
| Thread size | M16 x 1.5 | |
| Height | 20 mm | |
| Width | 31 mm | |
| Length | 9.5 m | |
| Material | ||
| Cable gland | Stainless steel 1.4404 / AISI 316L | |
| Flexible metal conduit | Stainless steel 1.4404 / AISI 316L | |
| Fastener | Stainless steel 1.4401 / AISI 316 | |
| Mass | 1500 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27279090 |
| ECLASS 12.0 | 27279090 |
| ECLASS 11.0 | 27279090 |
| ECLASS 10.0.1 | 27279090 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279090 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251501 |
