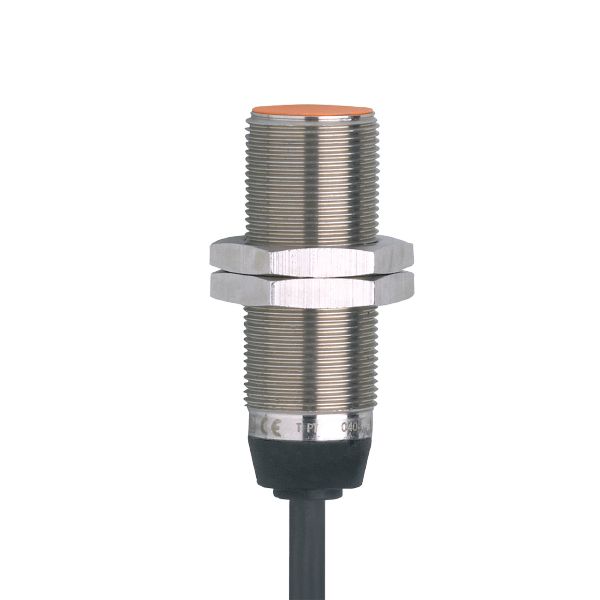

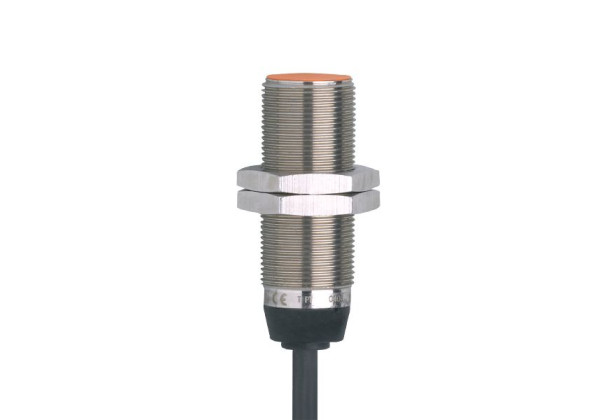

MGS201 - efector100-MGB3070-BPKG/M/ZH

Code: MGS201

Safe switch point also in case of mechanical tolerances
Long sensing range even through non-magnetisable metals
Temperature-stable and reproducible switch point
Clearly visible indication of the switching status
High impact, shock and vibration resistance

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range [mm]	70; (referred to magnet M 4.0)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 50

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" to cULus)
Current consumption [mA]	< 10
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	70; (referred to magnet M 4.0)
Response sensitivity [mT]	0.8

Accuracy / deviations

Hysteresis [% of Sr]	1...10

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-5 Surge	0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

2630

Mechanical data

Weight [g]	130
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 50
Thread designation	M18 x 1
Materials	housing: stainless steel; sensing face: PBT orange; lock nuts: brass

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MGS201-00 — 13.04.2023 —
