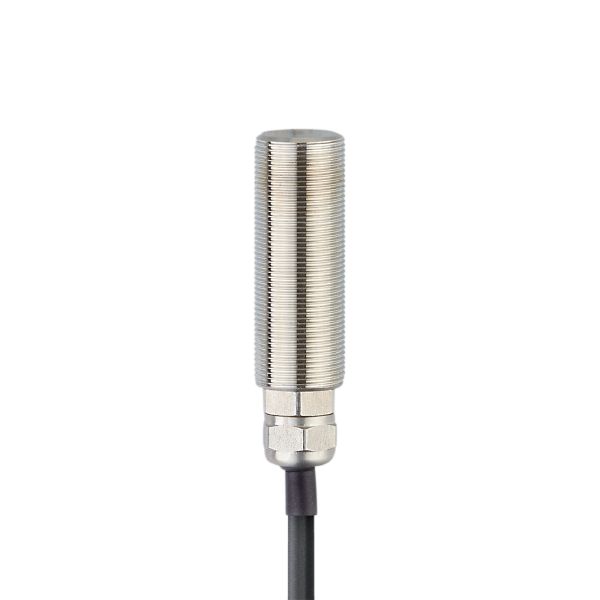

MGT000 - efector100-MGK2030-AKOA/R/2M
Brand: IFM Electronic
Code: MGT000
- Long sensing range even through non-magnetisable metals
- Temperature-stable and reproducible switch point
- High protection rating for the requirements of harsh industrial environments
- For use in high temperatures
- Robust metal face housing
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 25; (referred to magnet M 4.0) |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 66 |
Application
| Special feature | Full-metal housing |
|---|---|
| Application | high-temperature applications |
Electrical data
| Operating voltage [V] | 2...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Permanent current rating of switching output AC [mA] | 1000 |
| Permanent current rating of switching output DC [mA] | 1000 |
| Short-time current rating of switching output [mA] | 1000 |
| Max. switching power [W] | 100 |
| Short-circuit protection | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 25; (referred to magnet M 4.0) |
|---|---|
| Response sensitivity [mT] | 7.5 |
Operating conditions
| Ambient temperature [°C] | -40...180 |
|---|---|
| Protection | IP 65; IP 68; IP 69K |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||||||
| Vibration resistance |
| ||||||||||||
| MTTF [years] | 57078 |
Mechanical data
| Weight [g] | 212 |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 66 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: brass |
| Tightening torque for cable gland [Nm] | 5 |
| Tightening torque [Nm] | 50 |
| Full-metal housing | yes |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting |
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, silicone; 2 x 0.75 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MGT000-00 — 13.04.2023 —
