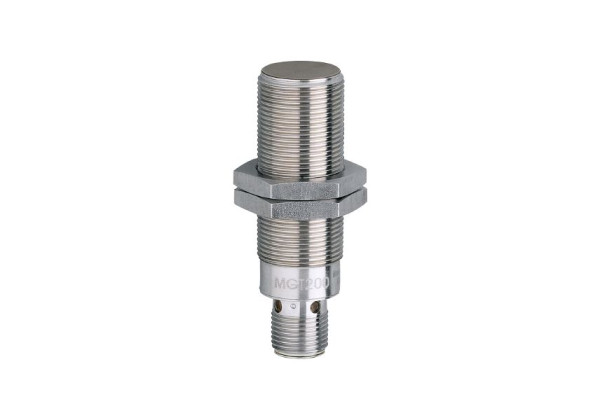

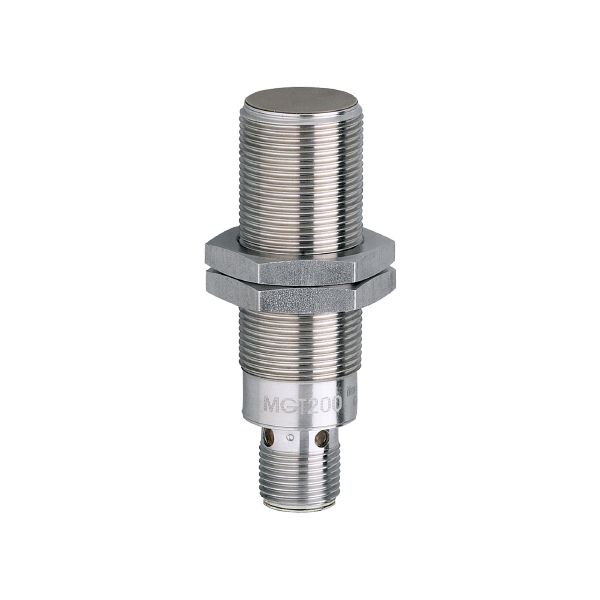

MGT201 - efector100-MGK3100-BPKG/M/V4A/US-104-DPS
Brand: IFM Electronic
Code: MGT201
- Long sensing range even through non-magnetisable metals: for pig detection
- Temperature-stable and reproducible switch point
- High protection rating for the requirements of the food and beverage industry
- Wide operating temperature range
- Food-grade full-metal housing
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 100; (referred to magnet M 4.0) |
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 60 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | pig detection |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 100; (referred to magnet M 4.0) |
|---|---|
| Response sensitivity [mT] | 0.3 |
Accuracy / deviations
| Hysteresis [% of Sr] | 1...10 |
|---|
Response times
| Pulse stretching [ms] | 1000 |
|---|
Operating conditions
| Ambient temperature [°C] | 0...104 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC |
| ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 769 |
Mechanical data
| Weight [g] | 47.3 |
|---|---|
| Housing | threaded type |
| Dimensions [mm] | M18 x 1 / L = 60 |
| Thread designation | M18 x 1 |
| Materials | housing: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MGT201-00 — 13.04.2023 —
