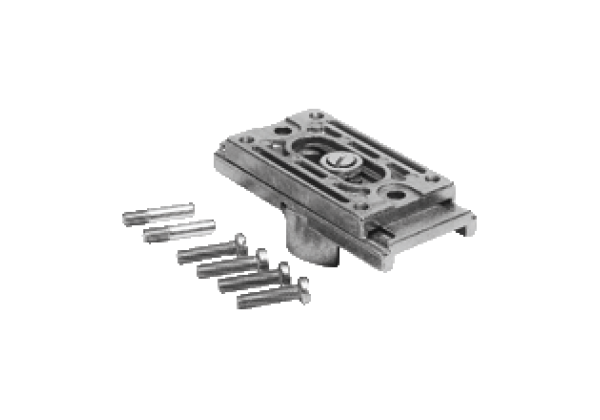

Mounting aid MH 04-2681F
Brand: Pepperl+Fuchs
Code: MH 04-2681F
Mounting aid for VariKont, +U1+ and +U9*
Datasheet excerpt: Technical data of MH 04-2681F
| Product Description |
|---|
| Mounting aid for VariKont, +U1+ and +U9* |
| Standard conformity | ||
|---|---|---|
| Standards | IEC 68-2-6, IEC 68-2-27 | |
| Mechanical specifications | ||
| Material | Chrome coated diecast zinc | |
| Mass | approx. 270 g | |
| Dimensions | 90 mm x 40 mm x 28 mm (with 2-point fixing) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
