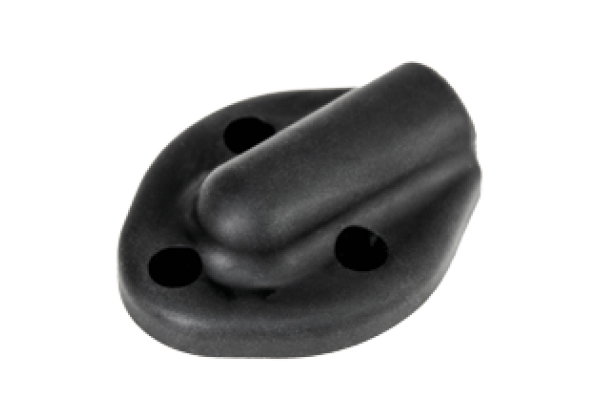

Mounting aid MH-18GMA
Brand: Pepperl+Fuchs
Code: MH-18GMA
Mounting flange for 18 mm diameter, right-angle ultrasonic sensors
Datasheet excerpt: Technical data of MH-18GMA
| Product Description |
|---|
| Mounting flange for 18 mm diameter, right-angle ultrasonic sensors |
| Mechanical specifications | ||
|---|---|---|
| Material | Sarlink® 5775B 75, fully cross-linked TPV, UV stabilized | |
| Tightening torque | 2 Nm | |
| Mounting | Hardware includes 3 each of the following: M5 x 20 mm socket-cap stainless steel screws Stainless steel washers , Stainless steel nuts | |
| General information | ||
| Supplementary information | For use with the following sensors: UBE1000-18GM40A-SE2-V1 UB300-18GM40A-E4-V1 UB300-18GM40A-E5-V1 UB300-18GM40A-U-V1 UB800-18GM40A-E4-V1 UB800-18GM40A-E5-V1 UB800-18GM40A-I-V1 UB800-18GM40A-U-V1 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
