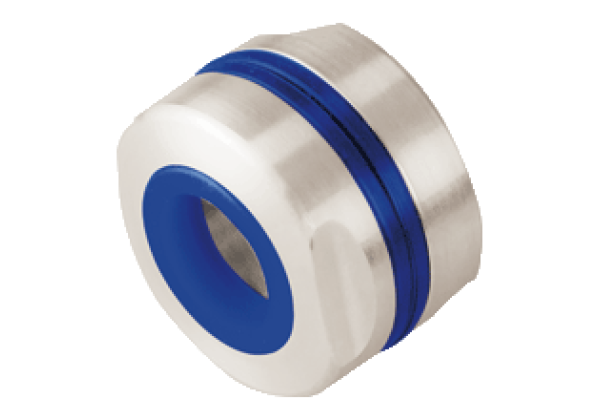

Mounting aid MH-18H-01
Brand: Pepperl+Fuchs
Code: MH-18H-01
Mounting aid, 18 mm, Retainer for 18 mm cylindrical sensors with smooth housing, Installation in 3... 8 mm thick sheet metal, Simple installation and exact setting
Datasheet excerpt: Technical data of MH-18H-01
| Product Description |
|---|
| Mounting aid, 18 mm |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Material | stainless steel 1.4404 / AISI 316L , EPDM | |
| Cut out dimensions | Hole diameter 29 mm t = 3... 8 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
