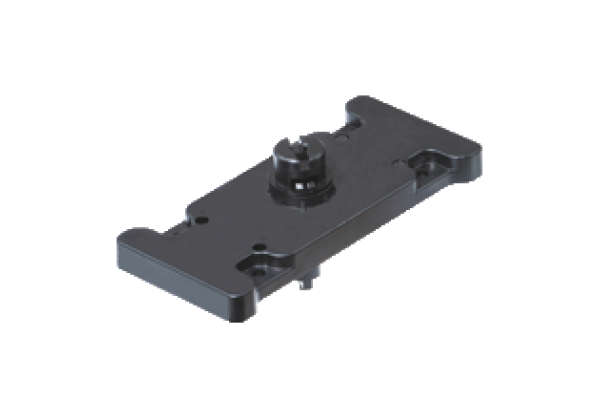

Mounting plate MH-F31/F31K
Brand: Pepperl+Fuchs
Code: MH-F31/F31K
Datasheet excerpt: Technical data of MH-F31/F31K
| Product Description |
|---|
| Mounting plate |
| Mechanical specifications | ||
|---|---|---|
| Material | PA 12 | |
| Mounting screw | cylinder head screws Mounting plate DIN 912 with hexagon socket | |
| General information | ||
| Scope of delivery | Mounting plate MH-BT65 Mounting plate fixing screw 4 x cylinder head screw DIN 912, M5X12, stainless steel with hexagon socket 4 x serrated lock washer DIN 6797, shape J Fixing screw for sensor F31 2 x cylinder head screw DIN 912, M5X16, stainless steel with hexagon socket Fixing screw for sensor F31K 2 x cylinder head screw DIN 912, M5X20, stainless steel with hexagon socket | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
